Demtech Bella Shower Base 1200mm x 1200mm x 45mm Linear Grate Silver

Belladonna Shower Base 1200mm x 1200mm x 47mm Linear Grate Anodised Aluminium

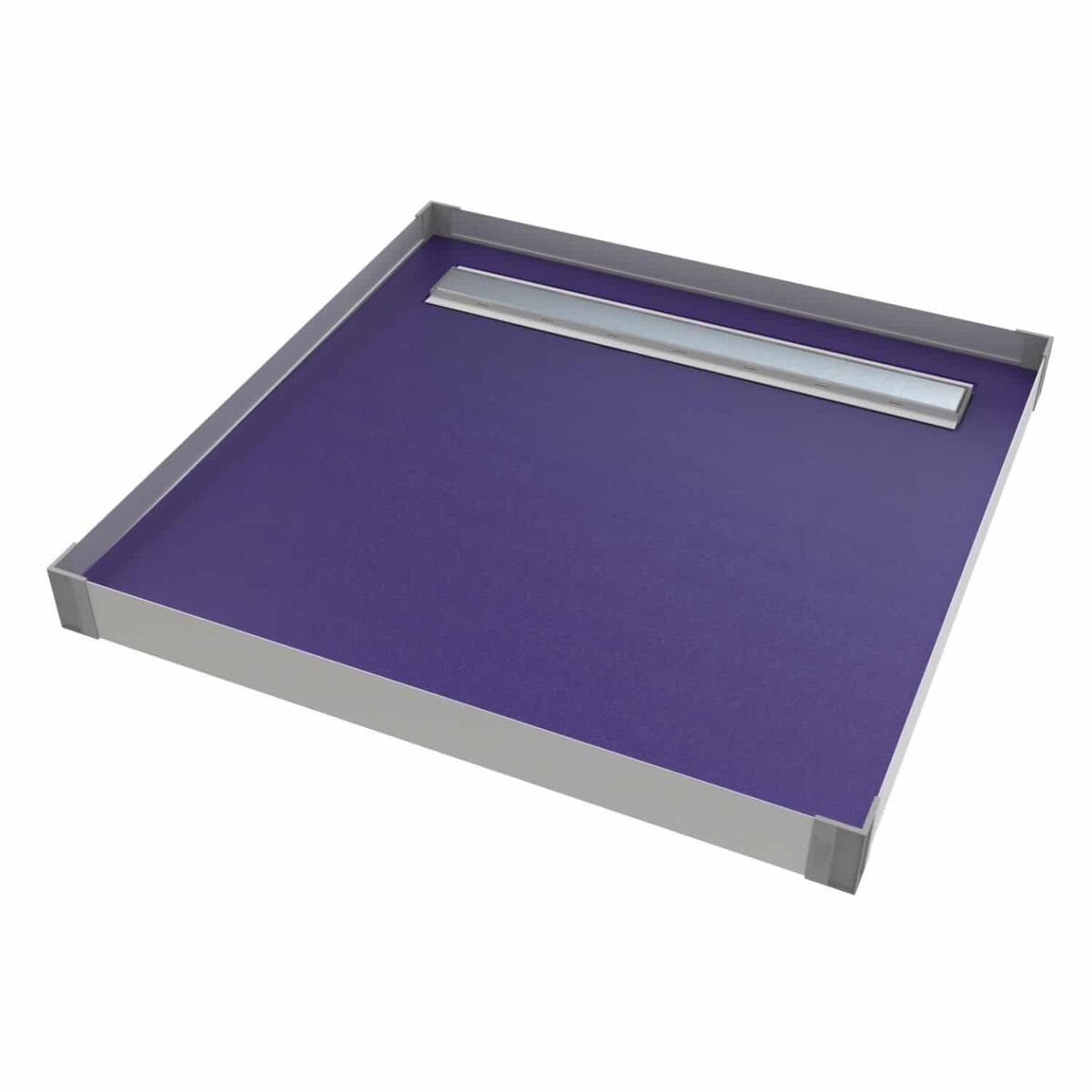

The Urban is a rectangular shaped preformed shower base with in-built falls towards a linear grate along the short side of the base.

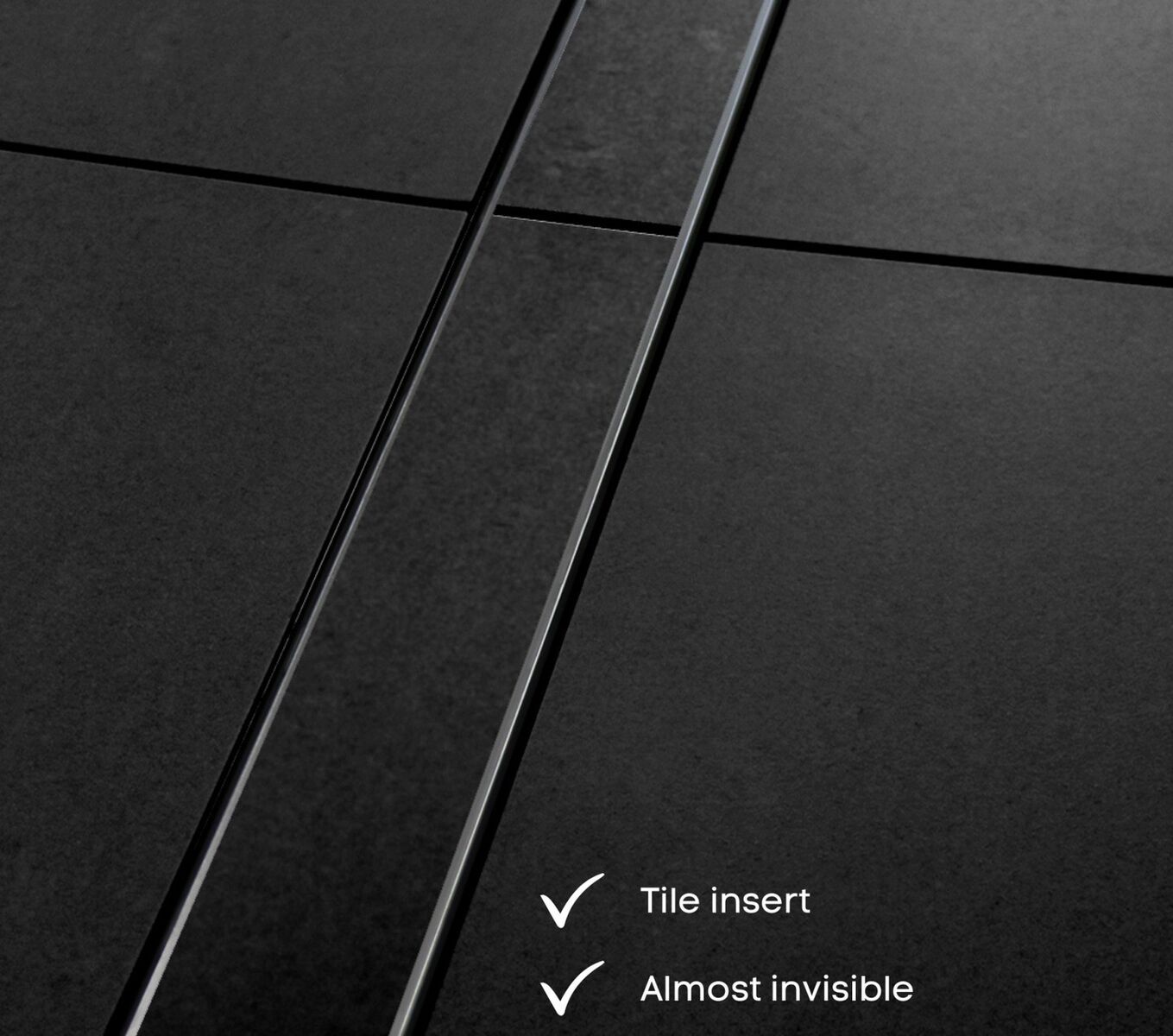

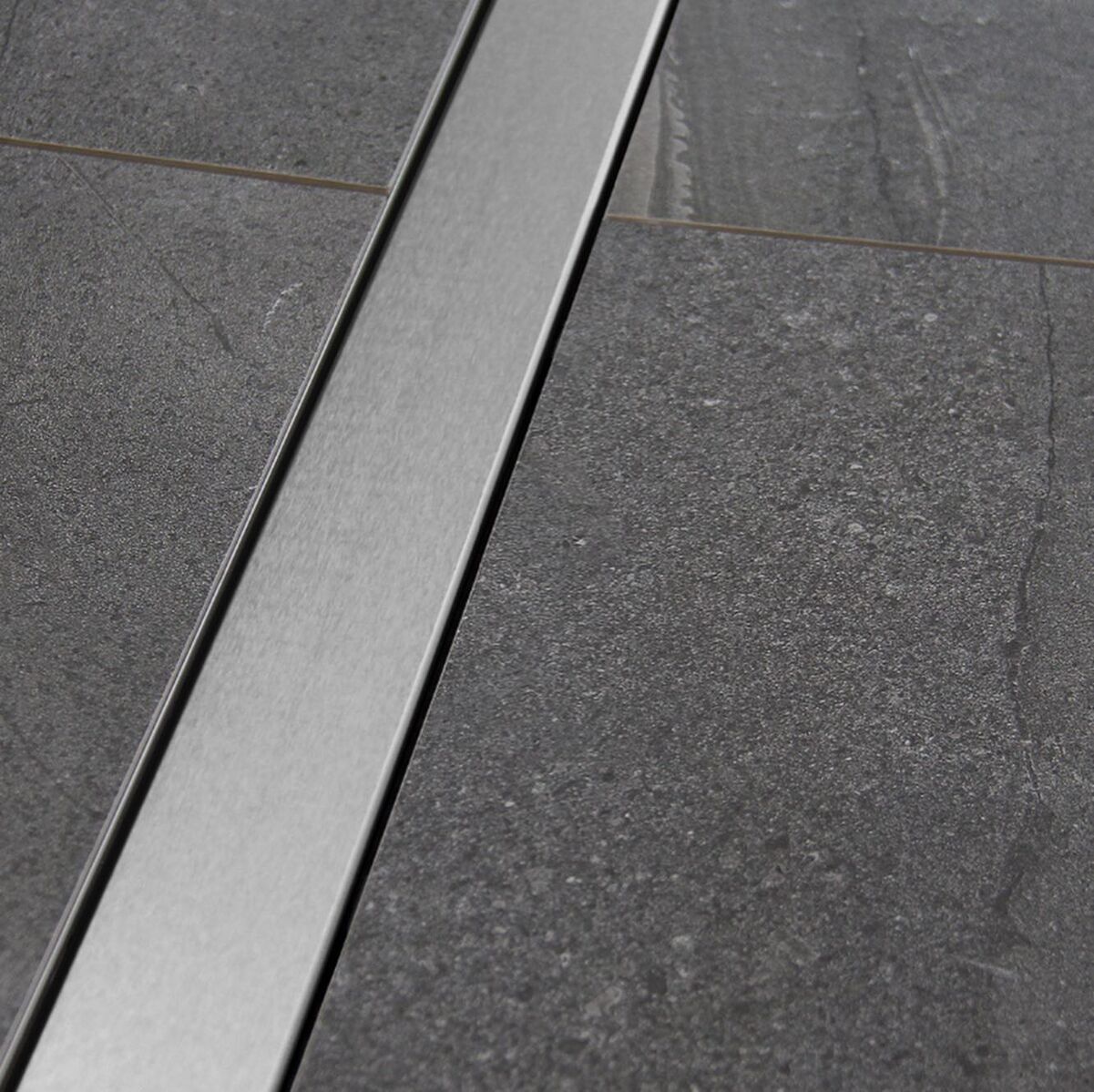

This tile-over shower base is available in a variety of different linear grate options including brushed aluminium, matte black or tile-insert.

CodeMark Certified under certificate number CM20323.

Shower Bases require some assembly – please see installation guide.

Package Contents: (May Vary Based On Product Requirement/Selections)

1     x      PRE-ASSEMBLED SHOWER TRAY
1     x      AQUAFLO LINEAR GRATE
1     x      SPIGOT( WATER OUTLET )
1     x     50mm SLEEVE
1     x     50mm SLEEVE EXTENSION
1     x     50mm BLACK RUBBER GROMMET
1     x     T40 DRIVE DRILL BIT
1     x     5.5mm DRILL BIT
1     x     ARBOR / 6.5MM DRILL BIT
1     x     51mm Bi Metal HOLE SAW
1     x     83mm Bi Metal HOLE SAW
1     x     DRILL GUIDE 65mm AQUAFLO
1     x     DEBURRING TOOL



Preformed shower base | tile over shower tray

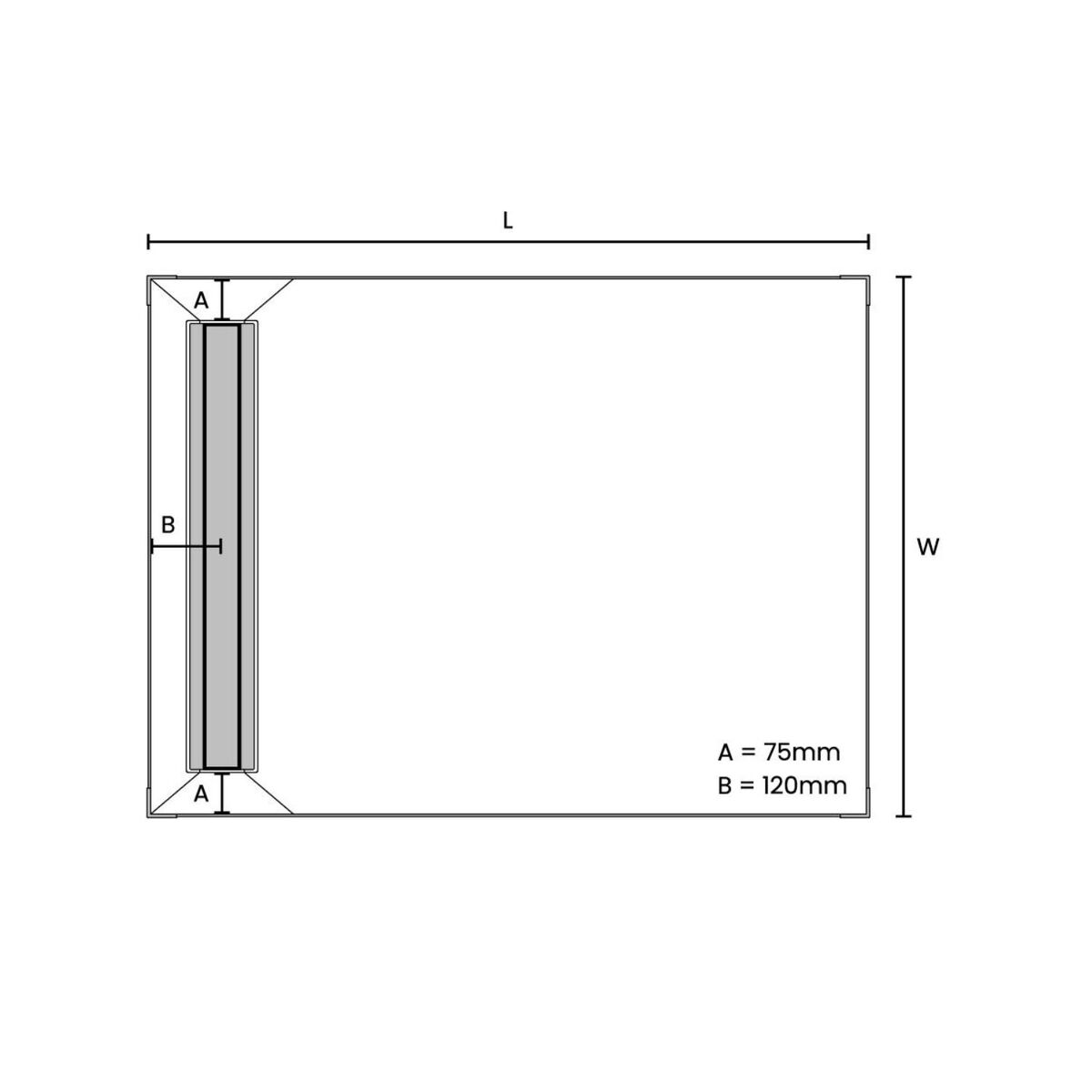

The Urban is a rectangular shaped tile shower tray which has a channel running along the short side of the base.

Insitu Systems® pre-formed shower bases are light-weight, easy to install and are manufactured with precision falls. Each shower base comes factory coated in Cureflex SLR2000 waterproof membrane.



Manufactured from a specially formulated polyurethane we call Flexothane®. Its unique cell structure means that it is ultra light-weight and provides both thermal and acoustic properties. It is also completely impervious to water.



Reduces labour & downtime

Pre-formed for quick and easy Installation, arriving on-site as a complete kit with all WaterMarked fittings Included

Built-in falls

manufactured with graded falls which meet and exceed Australian standards for drainage

Thermal and acoustic properties

withstands extreme temperatures ranging from -50°C to 120°C while also dampening noise in inhabited areas

100% Impervious to water

no need to worry about water seeping into the floor and causing damage



Lightweight polyurethane

made from a high-density foam we call Flexothane which is specially designed to eliminate the risk of potential leaks

Completely customisable

Suitable for both flush finish and above floor applications, with flexible waste outlet positioning (Optional Custom Order Please Enquire).



The Shower Base System is appraised for use as a pre-formed shower base system for wet areas of buildings:

on floor substrates of concrete, plywood, particle board and compressed fibre cement sheet
