Lipped Tile Over Tray 900x900mm Shower Base Centre Outlet Various Waste Grate Options Waterproof Puddle Flange [Waste Design: Slotted Square Stainl

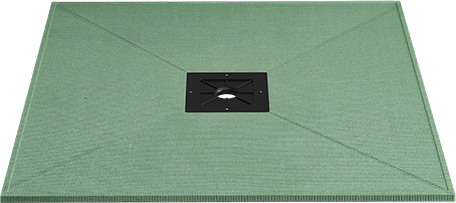

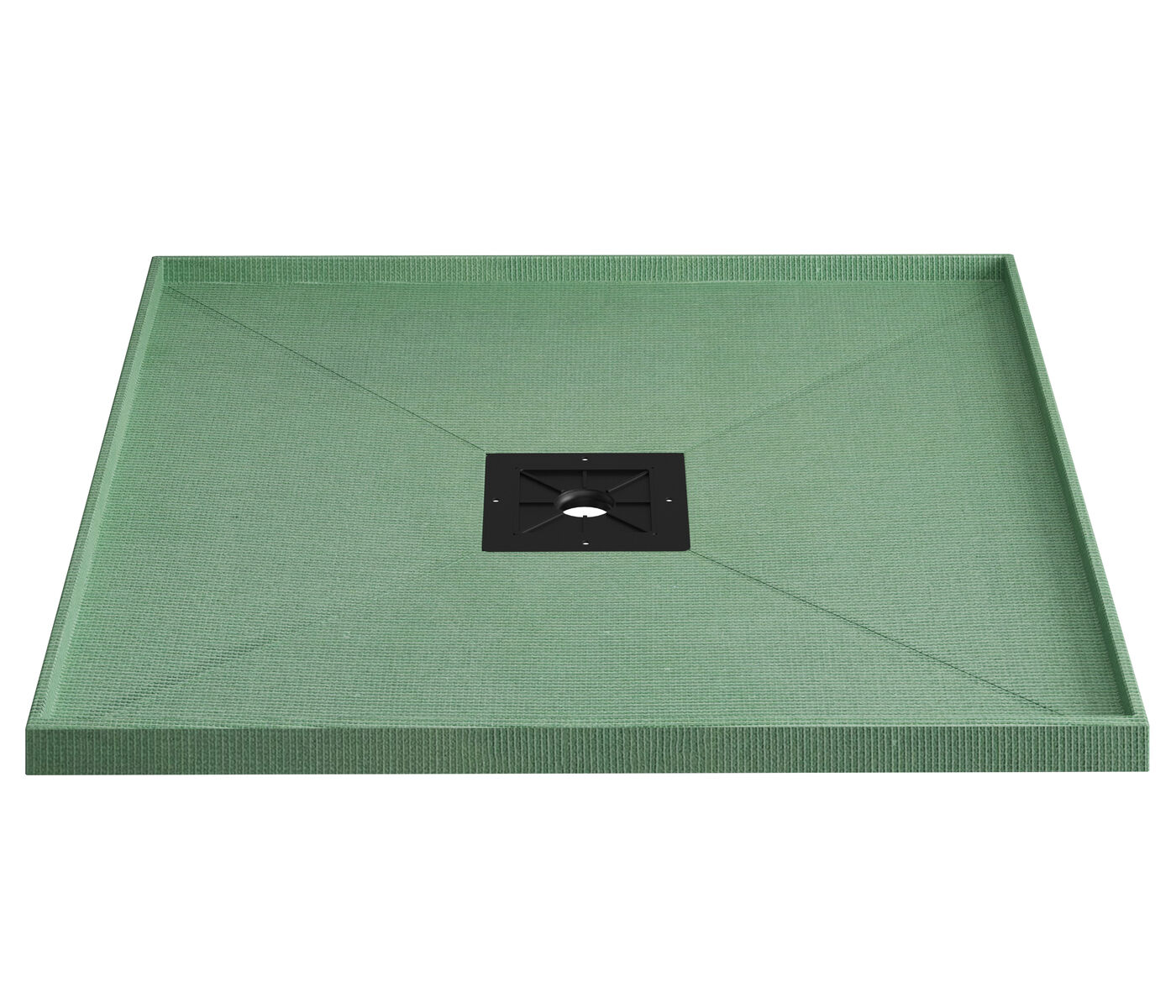

900 x 900mm Universal Self Draining Tile Tray - Leak Proof design shower base for tiling or laying vinyl over.

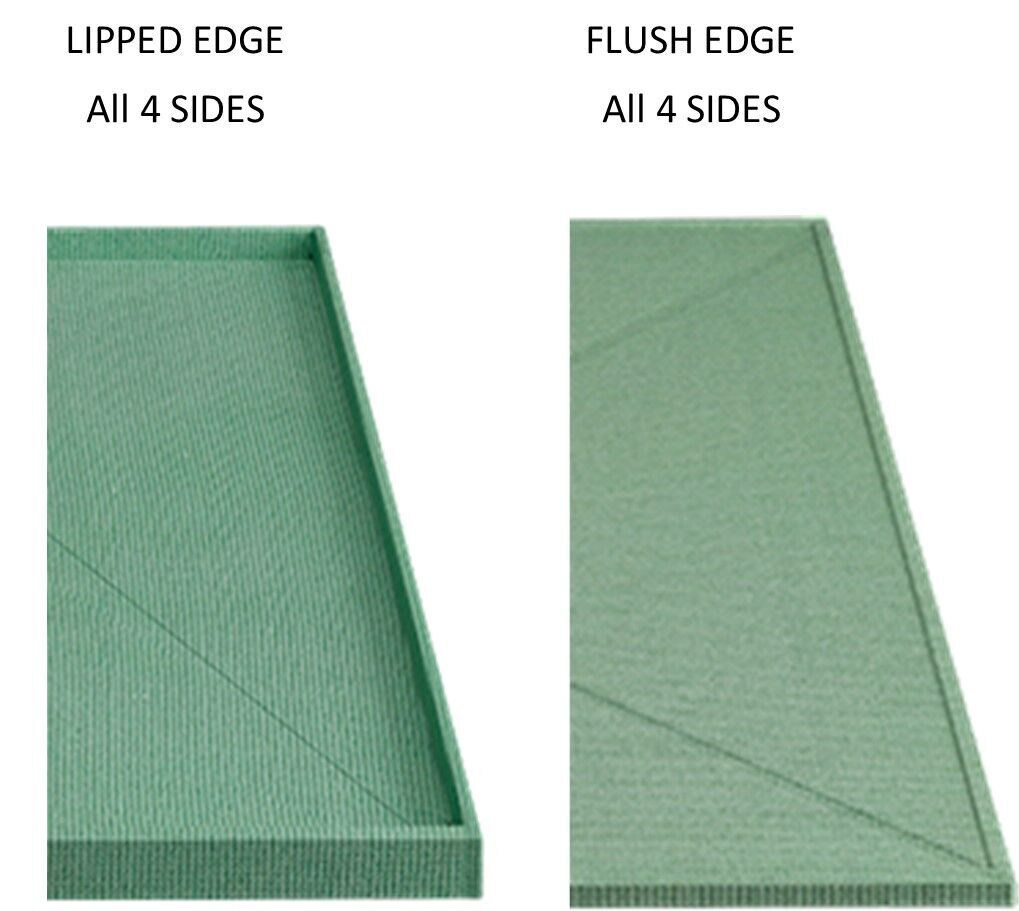

- 65mm High Easy to Trim Tile Flange Lip (Min. 25mm Without Lip)

- Centre Waste (or Rear waste see other listing)

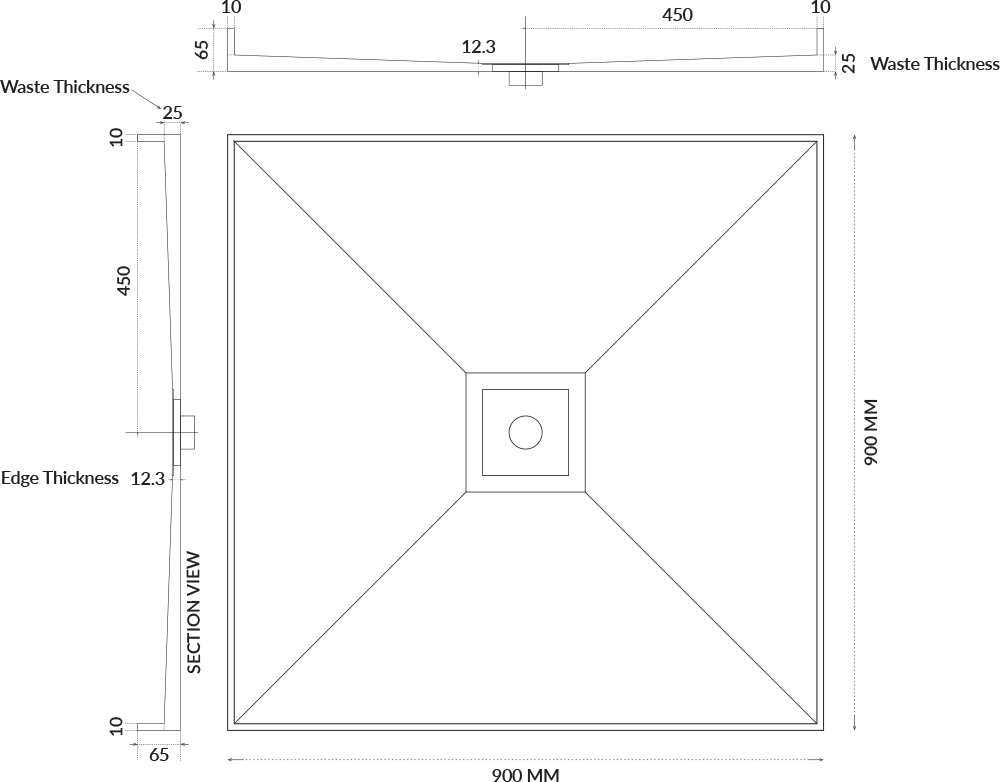

- Dimension detailed in photo: 900 W x 900 D mm

- Material: High Density PET (Polyethylene Terephthalate) Recycled Plastic

- Self Draining Design With Recommended Ratio Of Fall To Waste Outlet

- AS 3740-2010 and AS 3588-1996 compliant

- Includes the stainless Steel or Chrome (Brass) Grate of your selection

- 7 Year Manfacturers Warranty

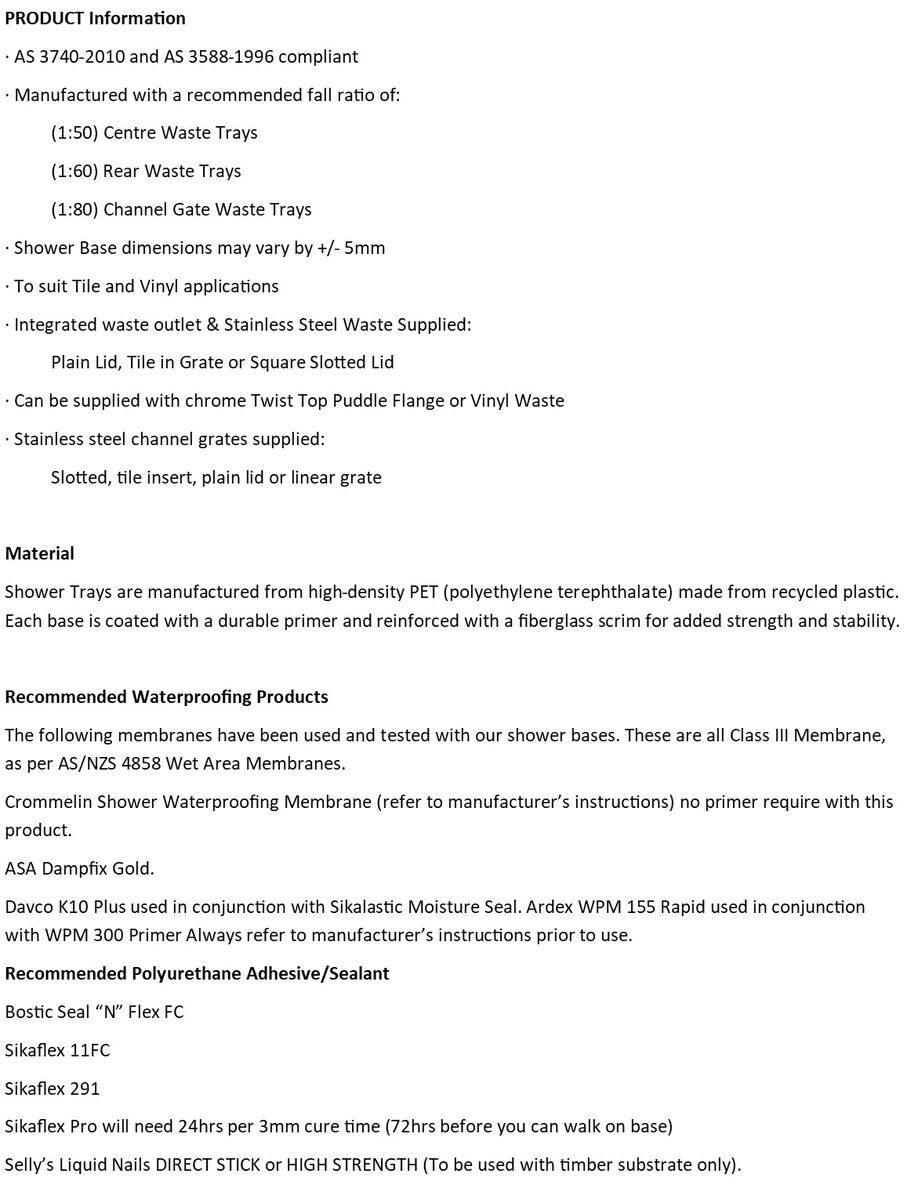

PRODUCT Specifications

· AS 3740-2010 and AS 3588-1996 compliant

· Manufactured with a recommended fall ratio of:

                (1:50) Centre Waste Trays

                (1:60) Rear Waste Trays

                (1:80) Channel Gate Waste Trays

· Shower Base dimensions may vary by +/- 5mm

· To suit Tile and Vinyl applications

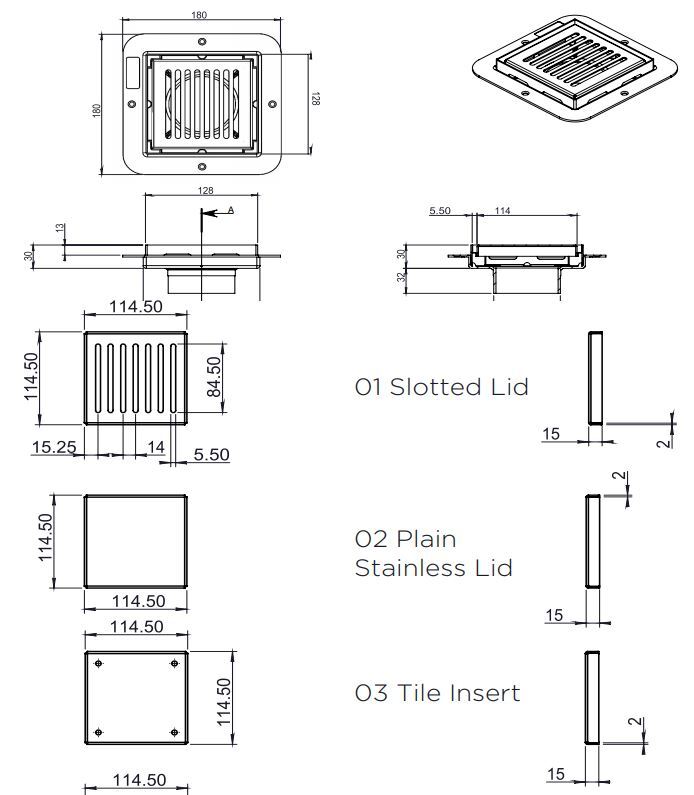

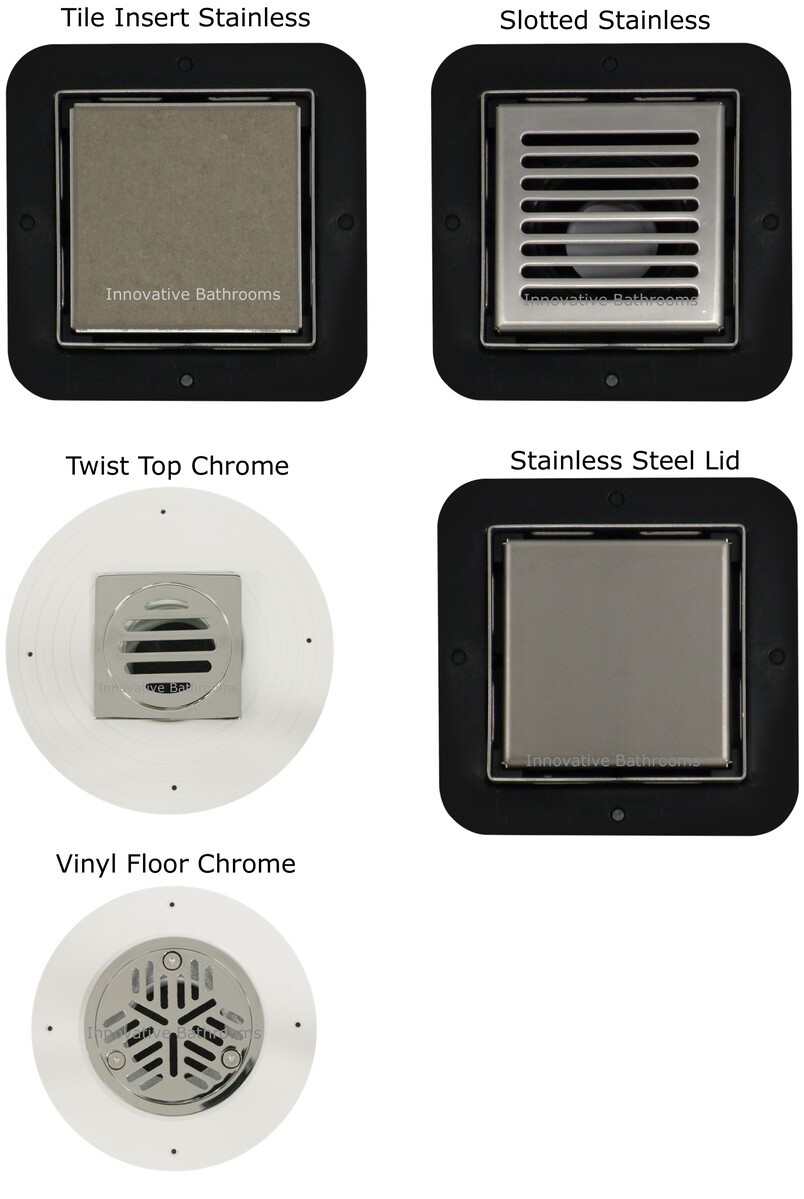

· Integrated waste outlet & Stainless Steel Waste Supplied:

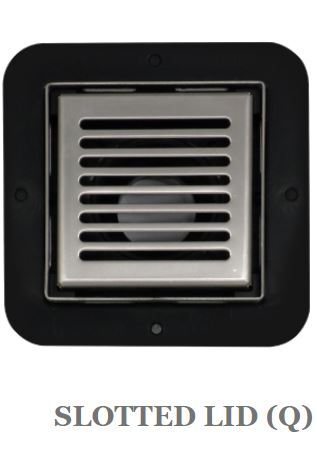

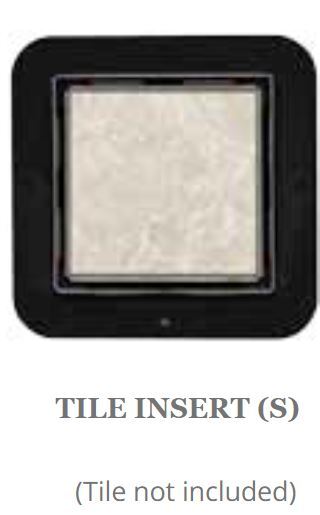

                Plain Lid, Tile in Grate or Square Slotted Lid

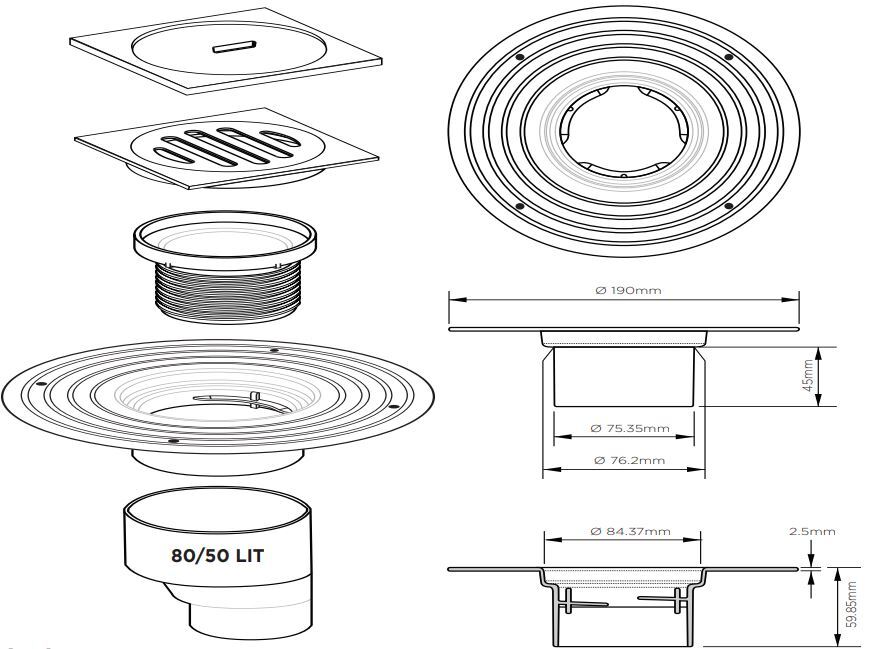

· Can be supplied with chrome Twist Top Puddle Flange or Vinyl Waste

· Stainless steel channel grates supplied:

                Slotted, tile insert, plain lid or linear grate



Material

Shower Trays are manufactured from high-density PET (polyethylene terephthalate) made from recycled plastic. Each base is coated with a durable primer and reinforced with a fiberglass scrim for added strength and stability.



Recommended Waterproofing Products

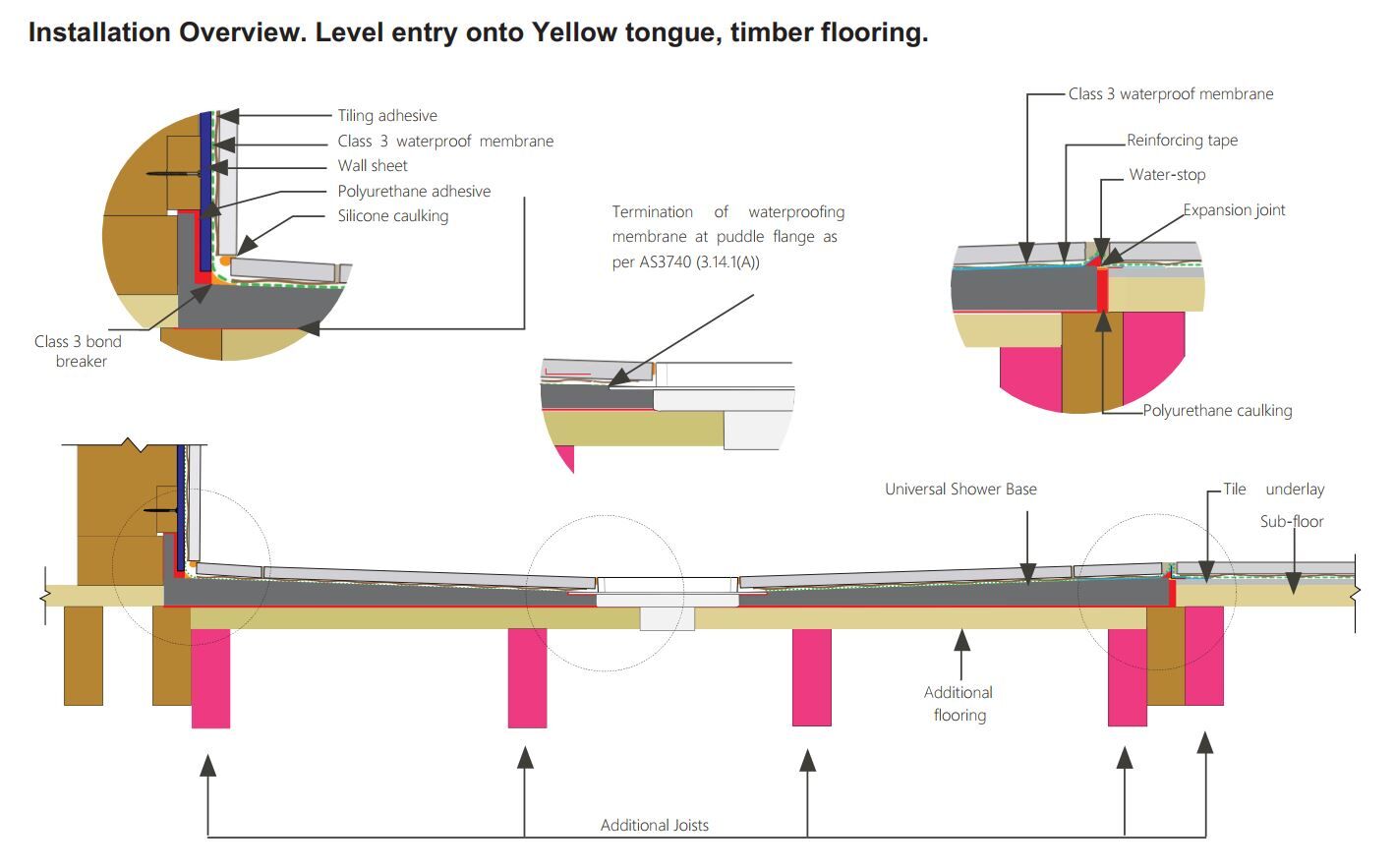

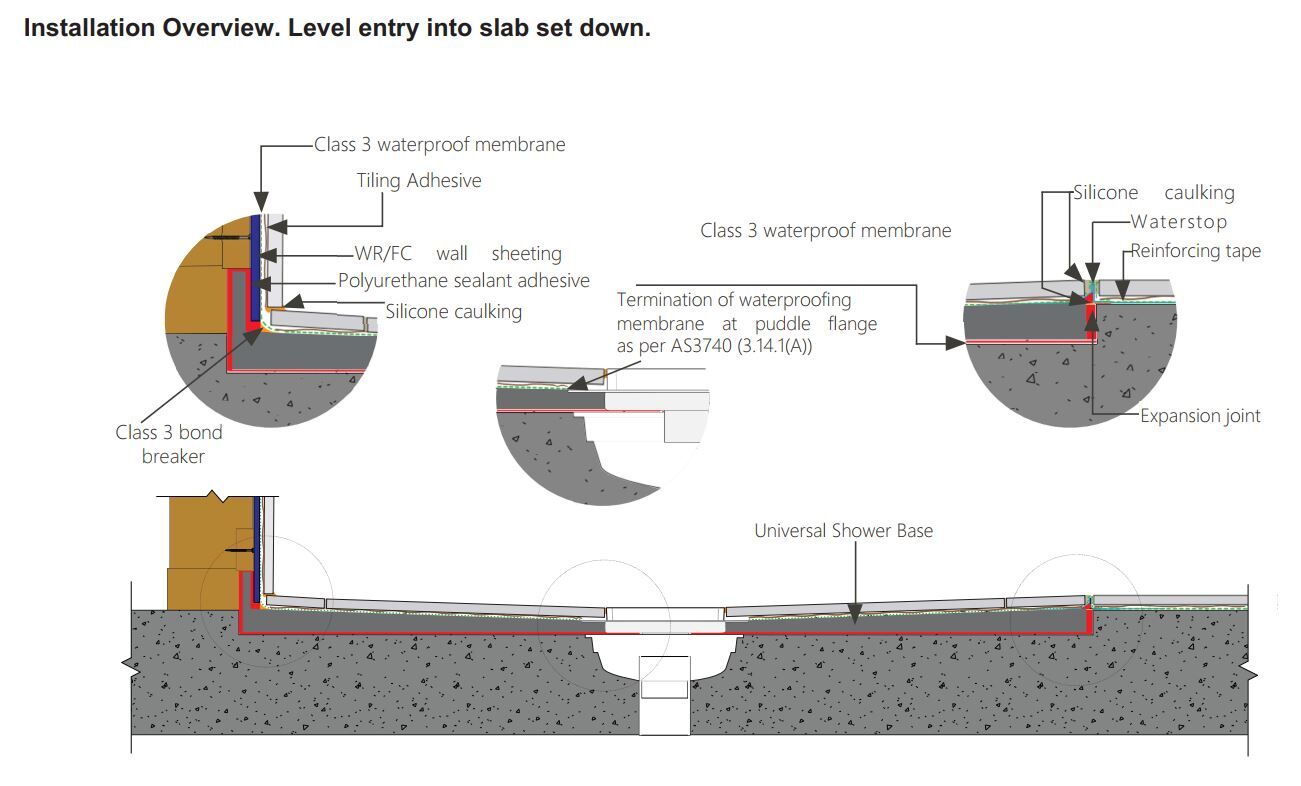

The following membranes have been used and tested with our shower bases. These are all Class III Membrane, as per AS/NZS 4858 Wet Area Membranes.

Crommelin Shower Waterproofing Membrane (refer to manufacturer’s instructions) no primer require with this product.

ASA Dampfix Gold.

Davco K10 Plus used in conjunction with Sikalastic Moisture Seal. Ardex WPM 155 Rapid used in conjunction with WPM 300 Primer Always refer to manufacturer’s instructions prior to use.

Recommended Polyurethane Adhesive/Sealant

Bostic Seal “N” Flex FC

Sikaflex 11FC

Sikaflex 291

Sikaflex Pro will need 24hrs per 3mm cure time (72hrs before you can walk on base)

Selly’s Liquid Nails DIRECT STICK or HIGH STRENGTH (To be used with timber substrate only).



***Made to order- please allow 7 business days manufacturing***

Also available in 900/1000/1200/1500/1800 mm - refer to other listings
