Lipped Tile Over Tray 920x920mm Shower Base With 800mm Rear Channel Grate Stainless Steel Waste Waterproof Puddle Flange [Grate: Tile Insert]

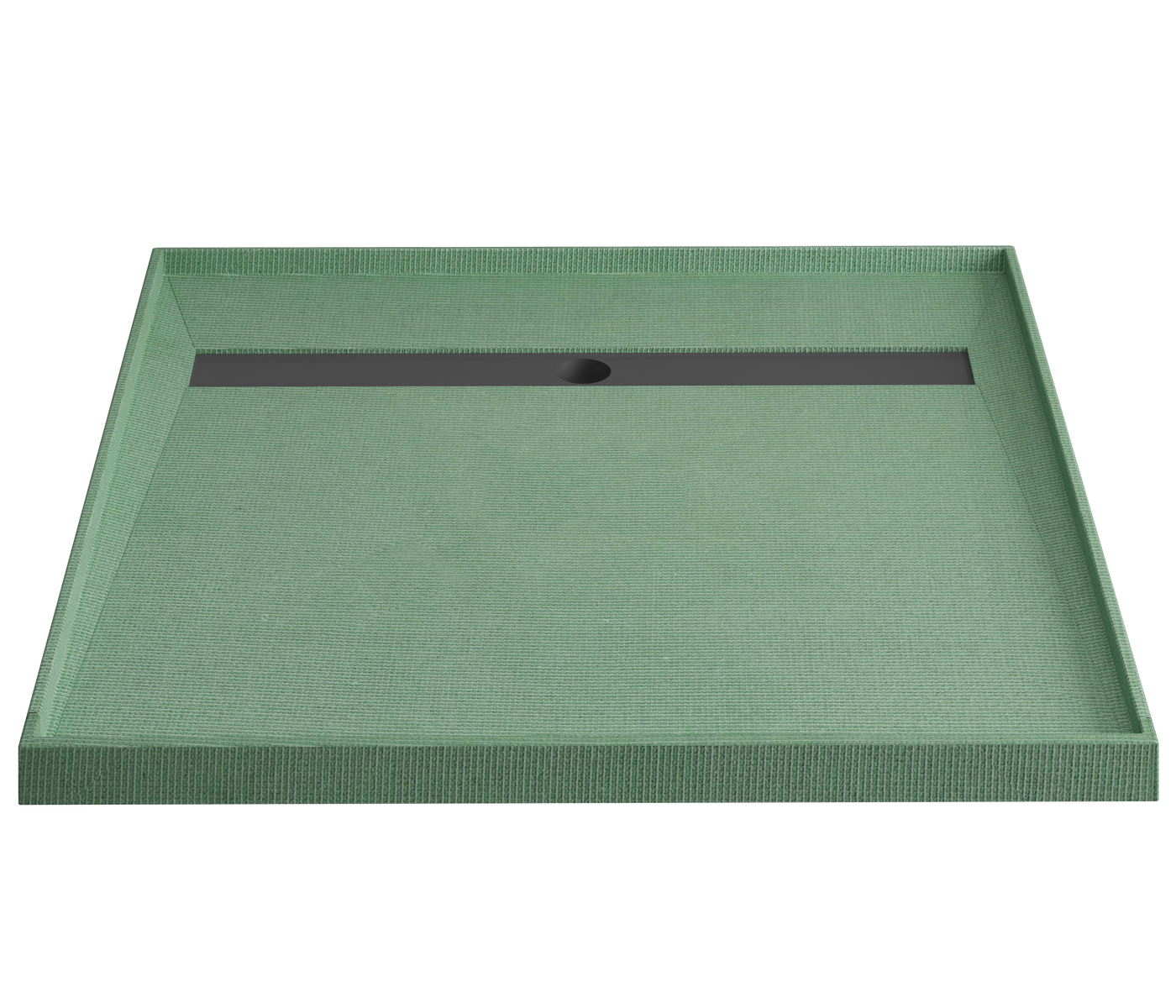

920 x 920mm Universal Self Draining Tile Tray - Leak Proof design shower base for tiling over.

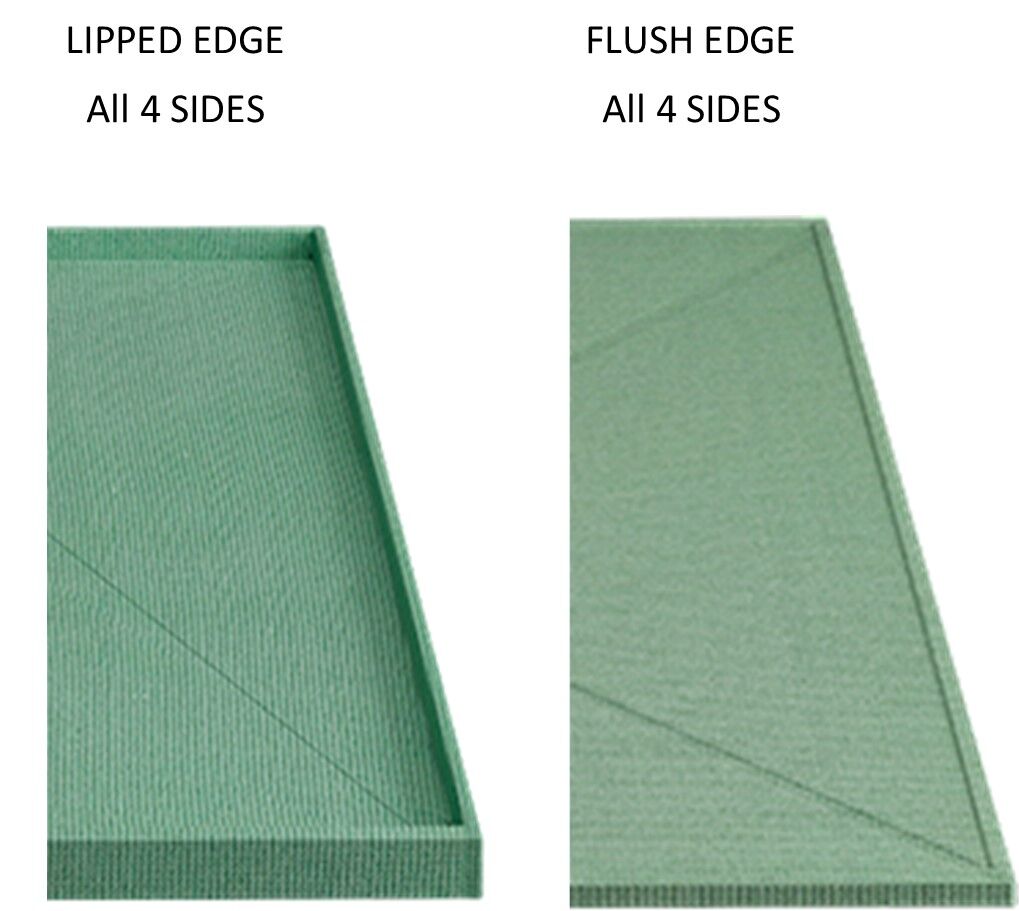

- 65mm High Easy to Trim Tile Flange Lip (Min. 25mm Without Lip)

- Includes 800mm Stainless Steel Channel Grate Waste (Select Waste Design You Require)

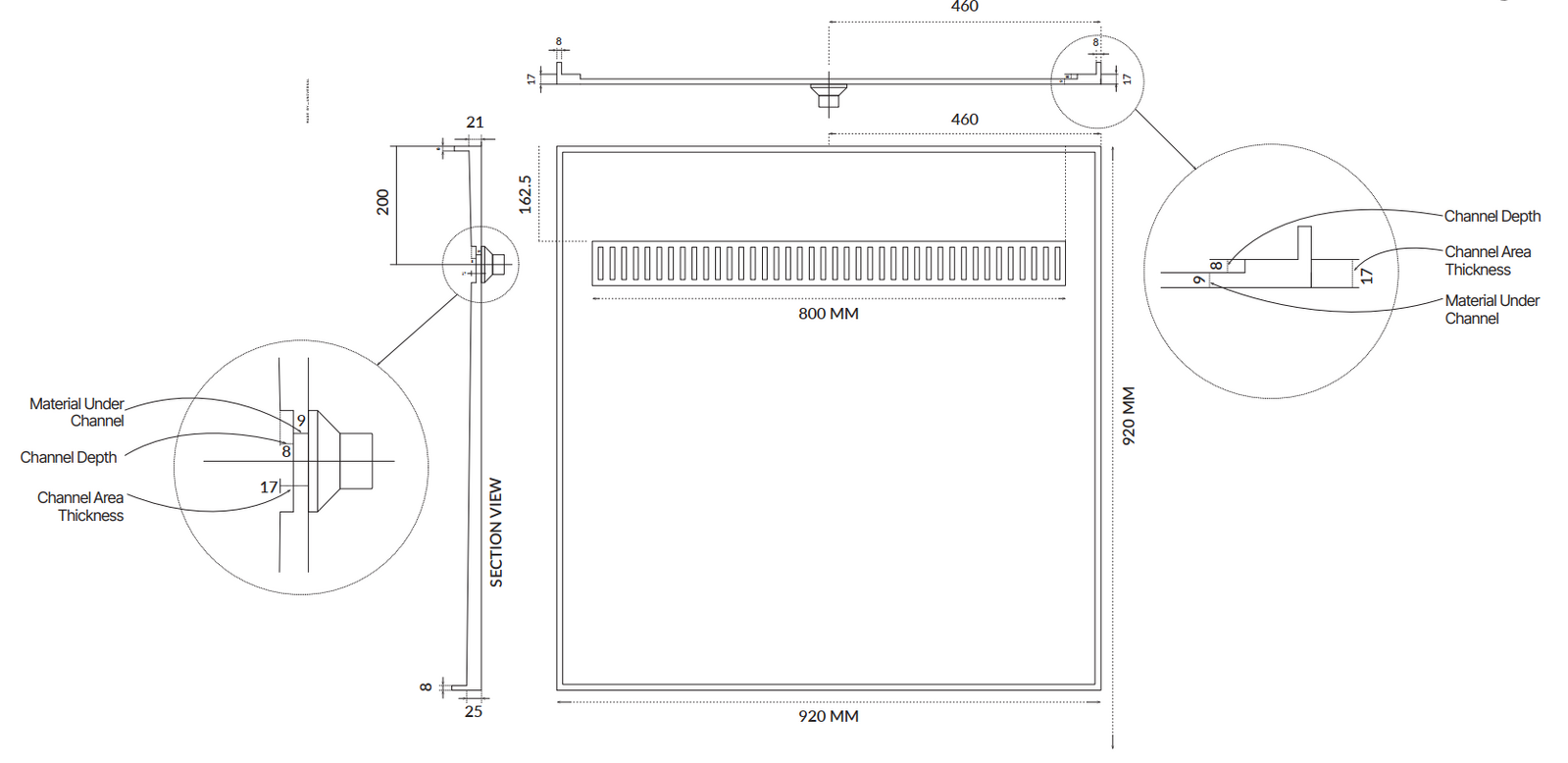

- Dimension detailed in photo: 920 W x 920 D mm

- Material: High Density PET (Polyethylene Terephthalate) Recycled Plastic

- Self Draining Design With Recommended Ratio Of Fall To Waste Outlet

- AS 3740-2010 and AS 3588-1996 compliant

- 7 Year Manfacturers Warranty

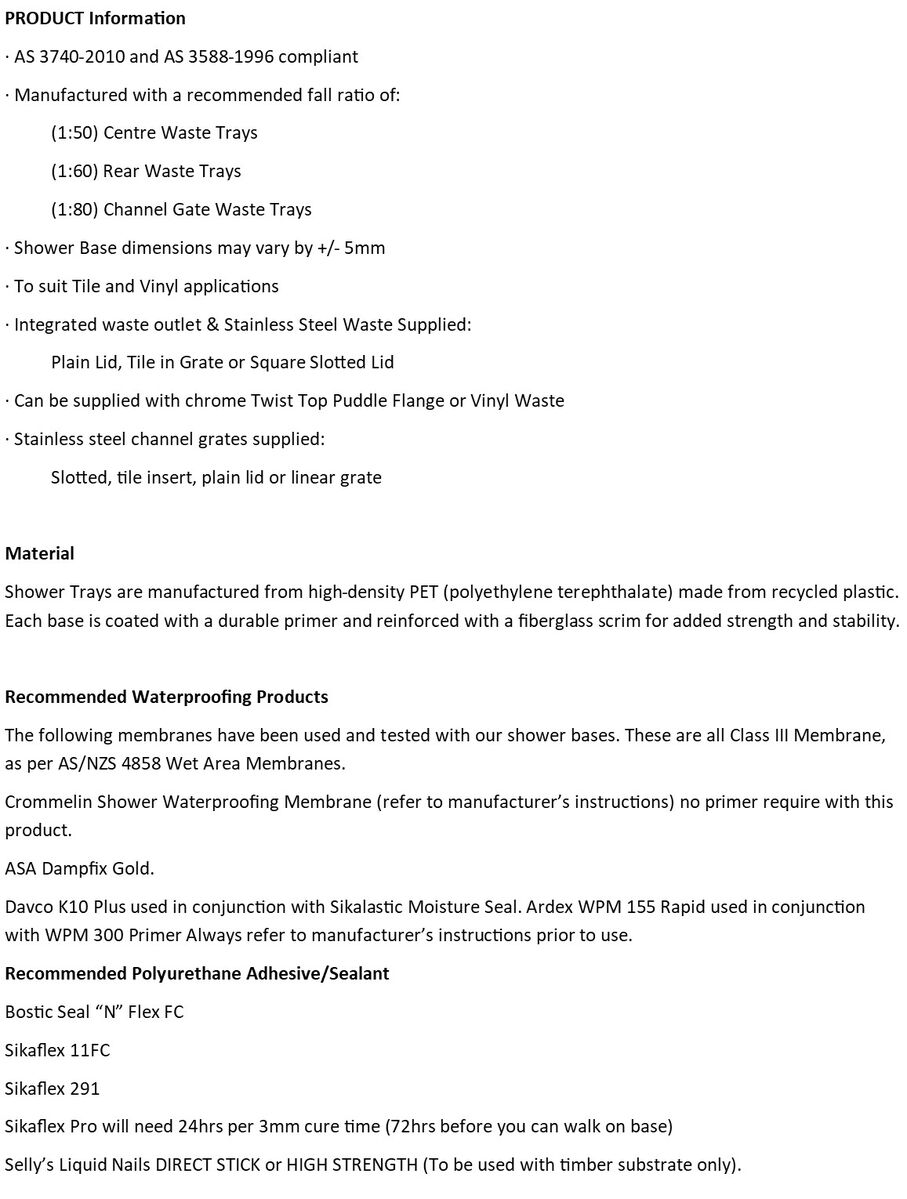

PRODUCT Specifications

· AS 3740-2010 and AS 3588-1996 compliant

· Manufactured with a recommended fall ratio of:

                (1:80) Channel Gate Waste Trays

                (1:50) Centre Waste Trays

                (1:60) Rear Waste Trays

· Shower Base dimensions may vary by +/- 5mm

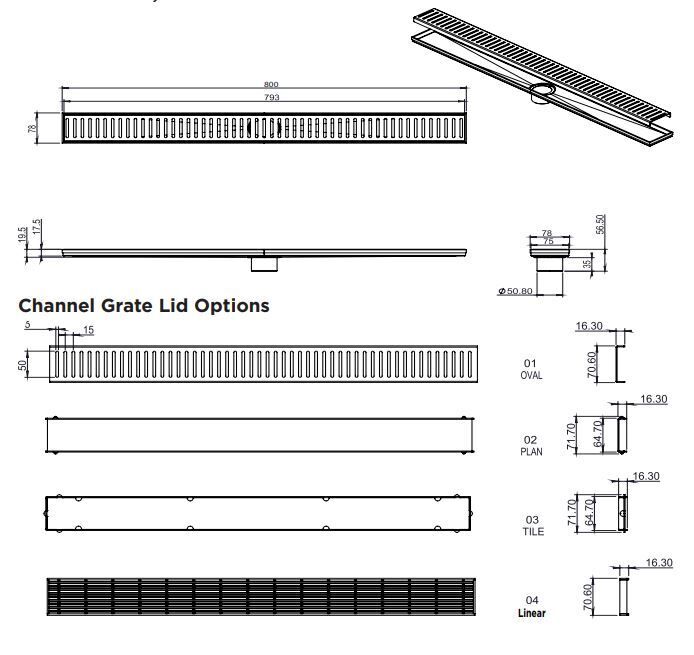

· Integrated waste outlet & Stainless Steel Waste Supplied:

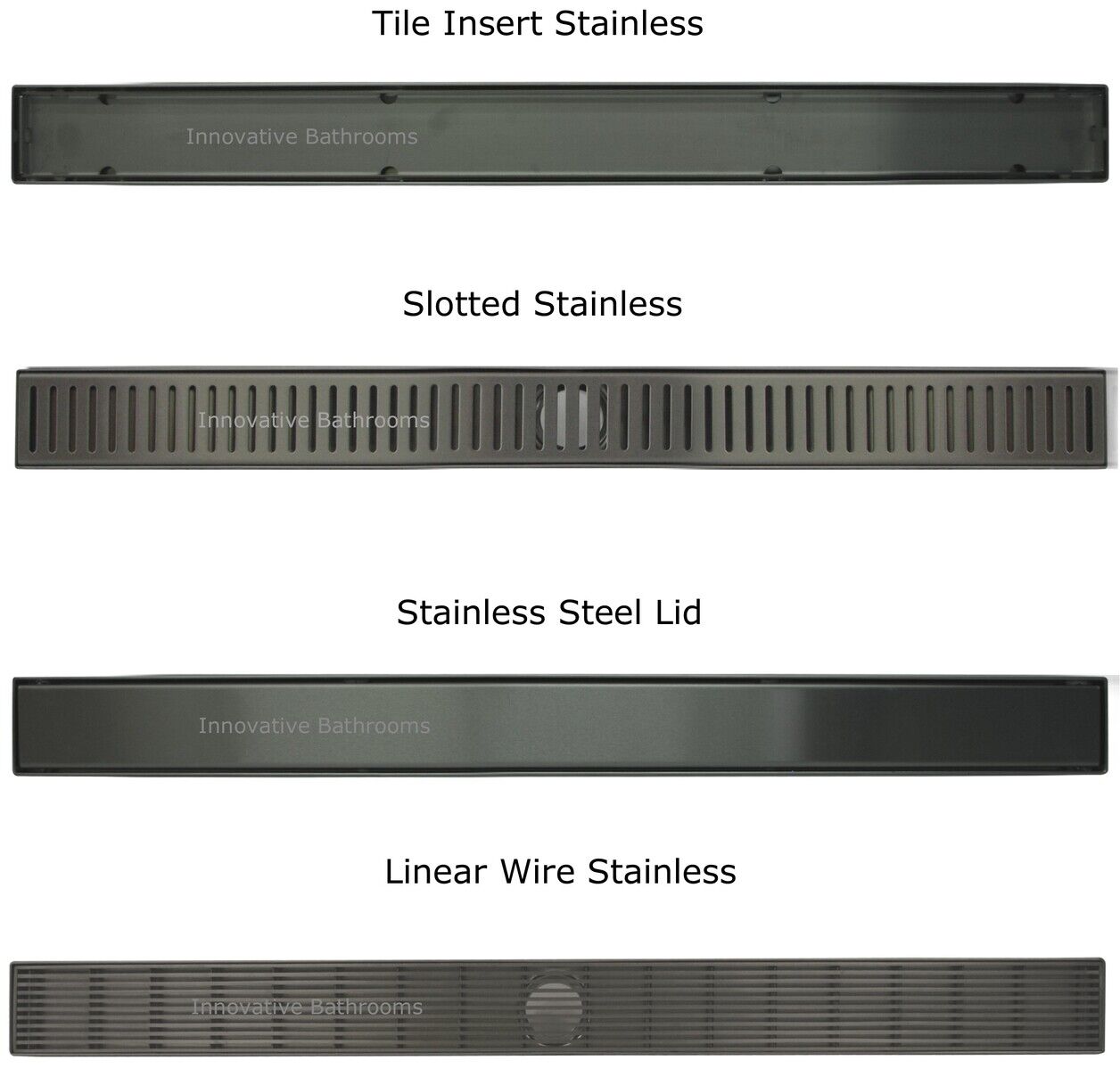

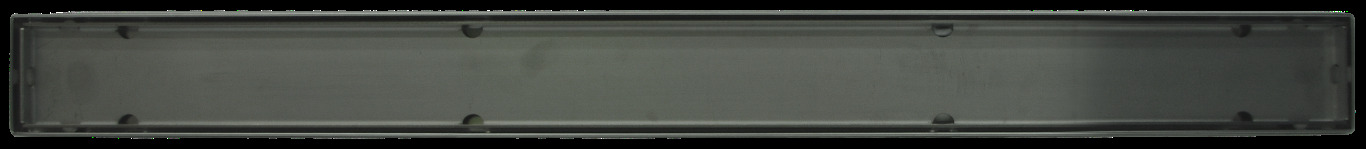

                Slotted Lid, Tile Insert Grate, Plain Solid Lid or Linear Wire Lid

Material

Shower Trays are manufactured from high-density PET (polyethylene terephthalate) made from recycled plastic. Each base is coated with a durable primer and reinforced with a fiberglass scrim for added strength and stability.

Recommended Waterproofing Products

The following membranes have been used and tested with our shower bases. These are all Class III Membrane, as per AS/NZS 4858 Wet Area Membranes.

Gripset 38FC or Gripset 30SC or Gripset Xpress Membrane, Prime with Gripset OP Primer.

Crommelin Shower Waterproofing Membrane (refer to manufacturer’s instructions) no primer require with this product.

ASA Dampfix Gold.

Davco K10 Plus used in conjunction with Sikalastic Moisture Seal. Ardex WPM 155 Rapid used in conjunction with WPM 300 Primer Always refer to manufacturer’s instructions prior to use.

Recommended Polyurethane Adhesive/Sealant

Bostic Seal “N” Flex FC

Sikaflex 11FC

Sikaflex 291

Sikaflex Pro will need 24hrs per 3mm cure time (72hrs before you can walk on base)

Selly’s Liquid Nails DIRECT STICK or HIGH STRENGTH (To be used with timber substrate only).



***Made to order- please allow 7 business days manufacturing***

Also available in 920/1020/1220/1520/1820 mm - refer to other listings
