! Attention shoppers ! Don't compromise on quality.
Many substandard suites are available on the market. Identical designs are produced by various manufacturers resulting in vast quality differences.
 Our suites have a high quality finish and rich white porcelain glaze, we invite you to inspect and compare - you will see the difference. Happy shopping!

Modern Curve Design Curtis In-Wall Cistern & Floor Mount RIMLESS Toilet Pan
Concealed cistern for minimalistic elegance, latest European design pan with chrome push button flush.


- Back to Wall Floor Mount Pan & Concealed In Wall Cistern(plumbing connections completely concealed within the pan)
- Manufactured to Australian Standards
- Heavy Duty
Quick Release Soft Close Seat and Lid, featuring push button removal for easy cleaning
- Full back to wall pan with completely concealed cistern

- Push Panel Options: Chrome Round, Chrome Square, Black Square
- Flush mechanist accessible & removable via push button wall plate for cleaning and maintenance (if required)
- Suitable for both Floor waste (S Trap) and Wall waste (P Trap) waste outlets (accessories and instructions provided)
Multiple Water Inlet Options: left, right and rear
- Solid Full Ceramic Construction
- Easy to install (recommended for installation by a licensed plumber or as required by local state or territory)

Watermark approved
WELS ****4 Star water Rating
Dual Flush Mechanism 4.5 / 3.0L providing economical water consumption
- S Trap (wall to waste centre) adjustable between 70 - 120 mm (160-185mm with optional adaptor +$5)
- P Trap (floor to waste centre) 180mm

- Warranty for manufacturers faults or defects:
   5 Year warranty on vitreous China
   2 Year warranty on valves and fixing kit

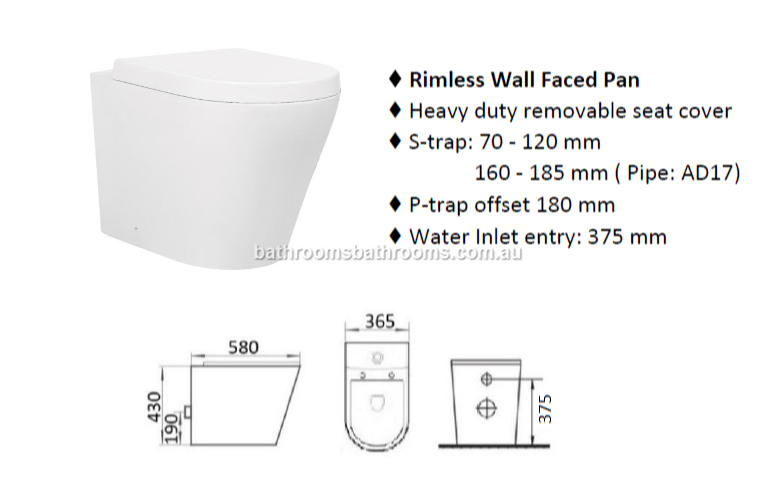

- Dimensions: Width 365 x Length 580mm x Height 430 mm (See Diagram for detailed specificatons)

Package Contents

Toilet Cistern
Push Panel: Option Selected (specify with order)
Toilet Pan
Soft close seat and lid
P Trap (waste into wall) standard setup, S Trap Kit (waste into floor) included FREE (please request)
Fittings, accessories, instructions



WELS Specification:
License No: 1641
Registration Number: L05694
Star Rating: 4
Water Consumption: 3.4Litres/Min.
WELS Model Number: LT-1003D-R

Model # T1003DR-PANONLY
Barcode # Does not apply
Shipping Weight 60.0000kg
Shipping Width 0.510m
Shipping Height 0.540m
Shipping Length 0.600m
Shipping Cubic 0.165200000m3
Unit Of Measure 1
Assembled Length 0.580m
Assembled Height 0.430m
Assembled Width 0.370m
