Rimless Tornado In Wall Toilet Package Ceramic Concealed Cistern S&P trap Soft Close WELS [Waste: P-Trap] [Cistern & Panel: Black Square]
Many substandard suites are available on the market. Identical designs are produced by various manufacturers resulting in vast quality differences.
Our suites have a high quality finish and rich white porcelain glaze, we invite you to inspect and compare - you will see the difference. Happy shopping!

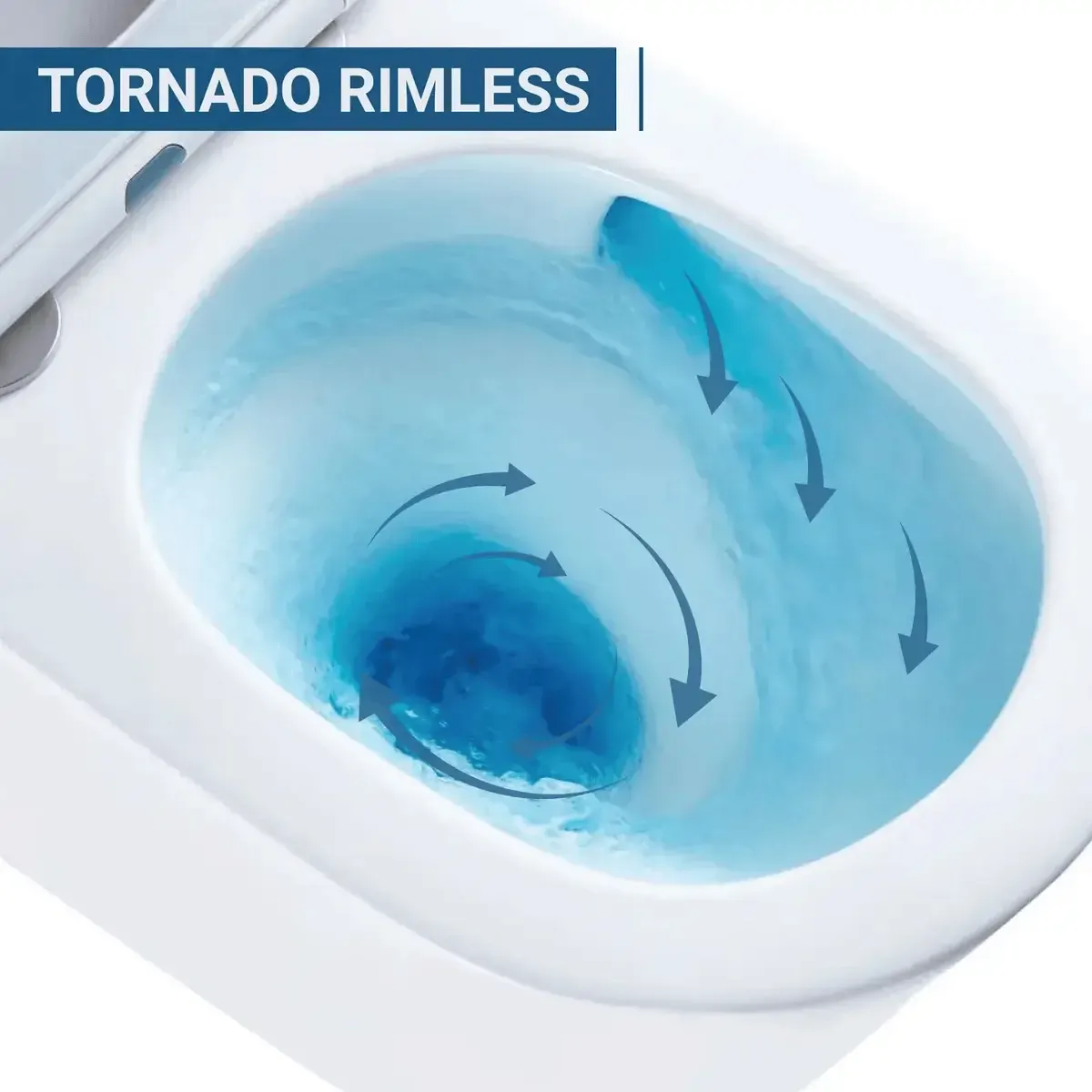

Modern Curve Design Curtis In-Wall Cistern & Floor Mount RIMLESS TORNADO Toilet Pan

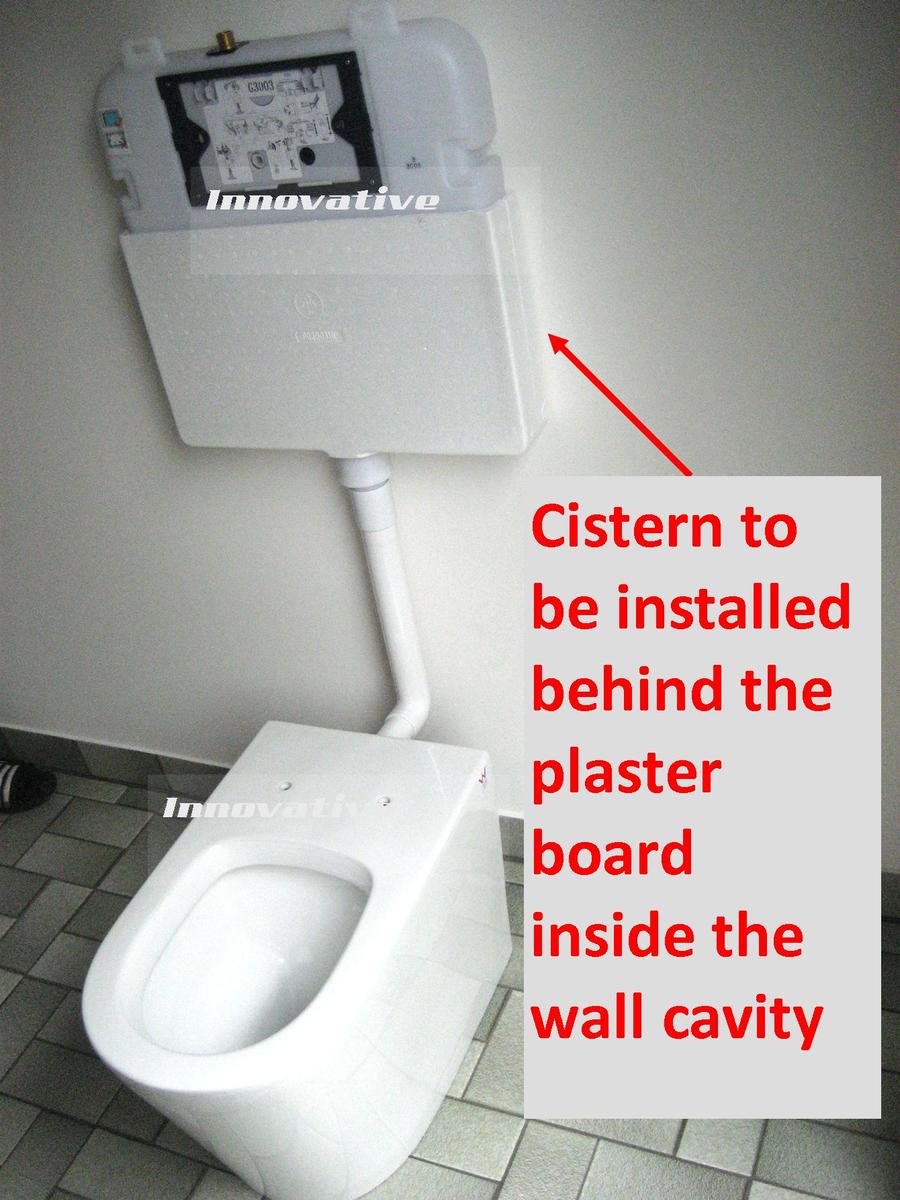

Concealed cistern for minimalistic elegance, latest European design pan with chrome push button flush.
Features
- Manufactured to Australian Standards

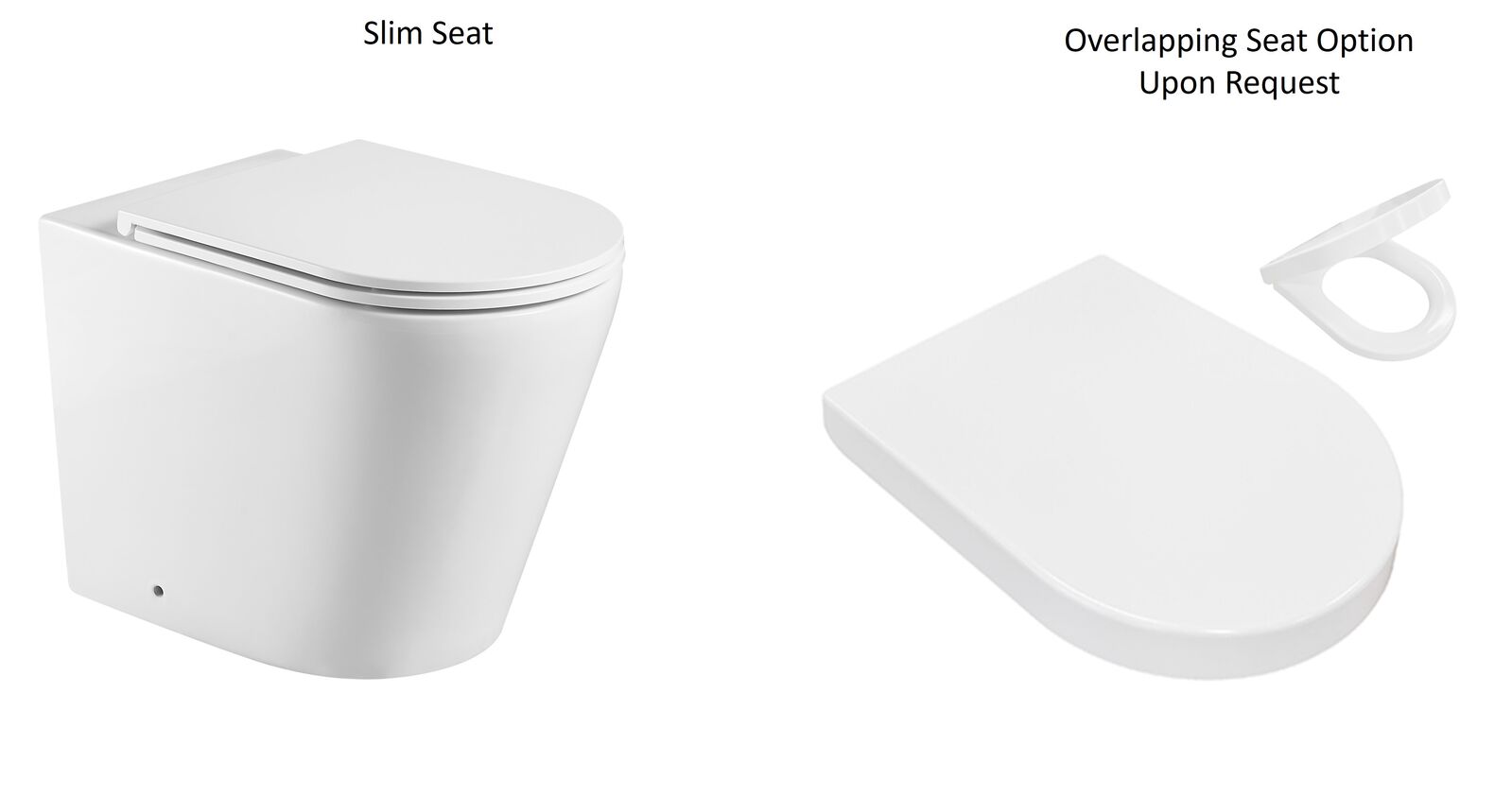

- Heavy Duty Quick Release Soft Close Seat and Lid, featuring push button removal for easy cleaning
- Full back to wall pan with completely concealed cistern

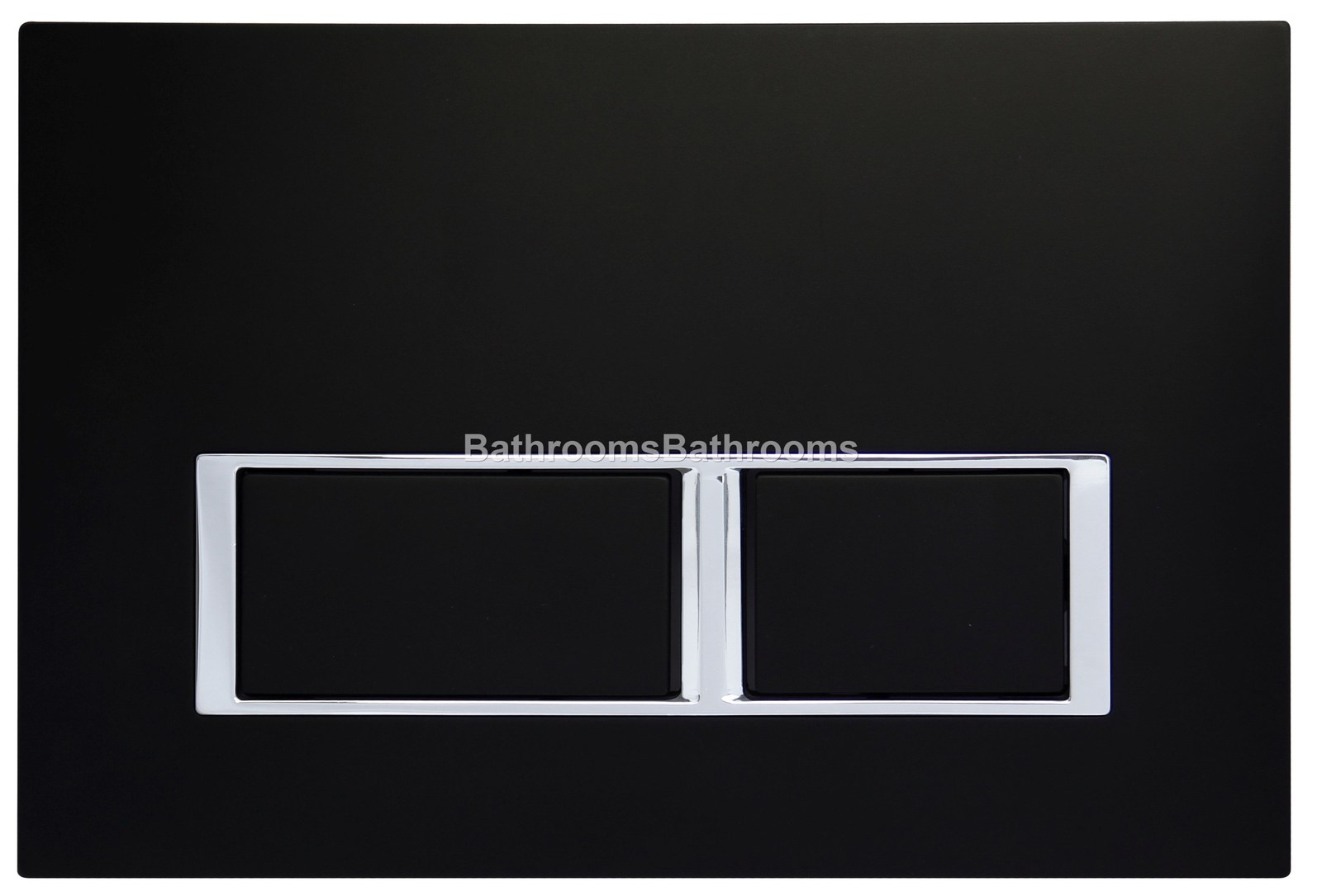

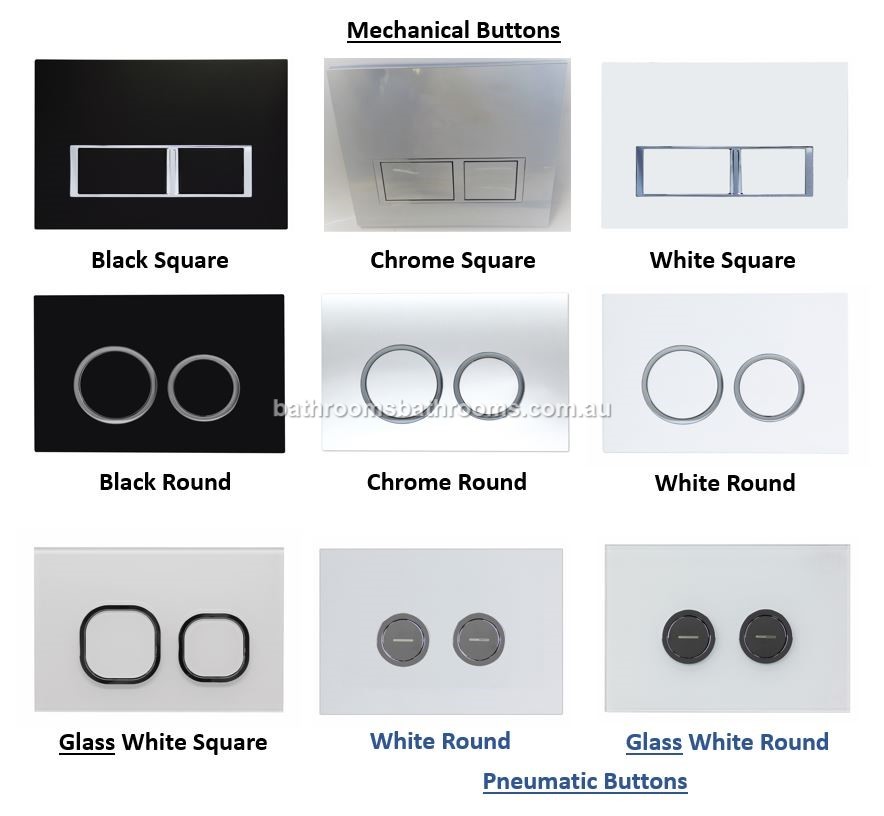

- Push Panel Options: Chrome Round, Chrome Square, Black Square
- Flush mechanist accessible & removable via push button wall plate for cleaning and maintenance (if required)

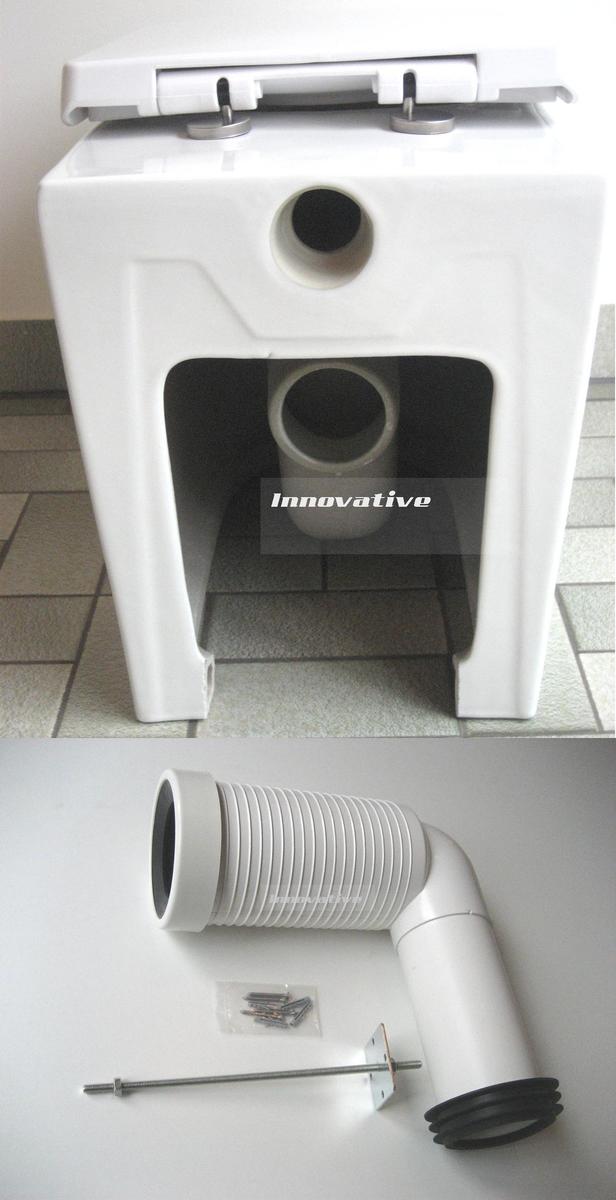

- Suitable for both Floor waste (S Trap) and Wall waste (P Trap) waste outlets (accessories and instructions provided)
- Multiple Water Inlet Options: left, right and rear
- Solid Full Ceramic Construction
- Easy to install (recommended for installation by a licensed plumber or as required by local state or territory)
Specification
- Watermark approved
- WELS water Rating
- Dual Flush Mechanism providing economical water consumption
- S Trap (wall to waste centre) adjustable between 70 - 120 mm
- P Trap (floor to waste centre) 180mm
- Warranty for manufacturers faults or defects:
15 Year warranty on vitreous China
15 Year warranty on cistern Tank
3 Year warranty on valves and flushing mechanisms

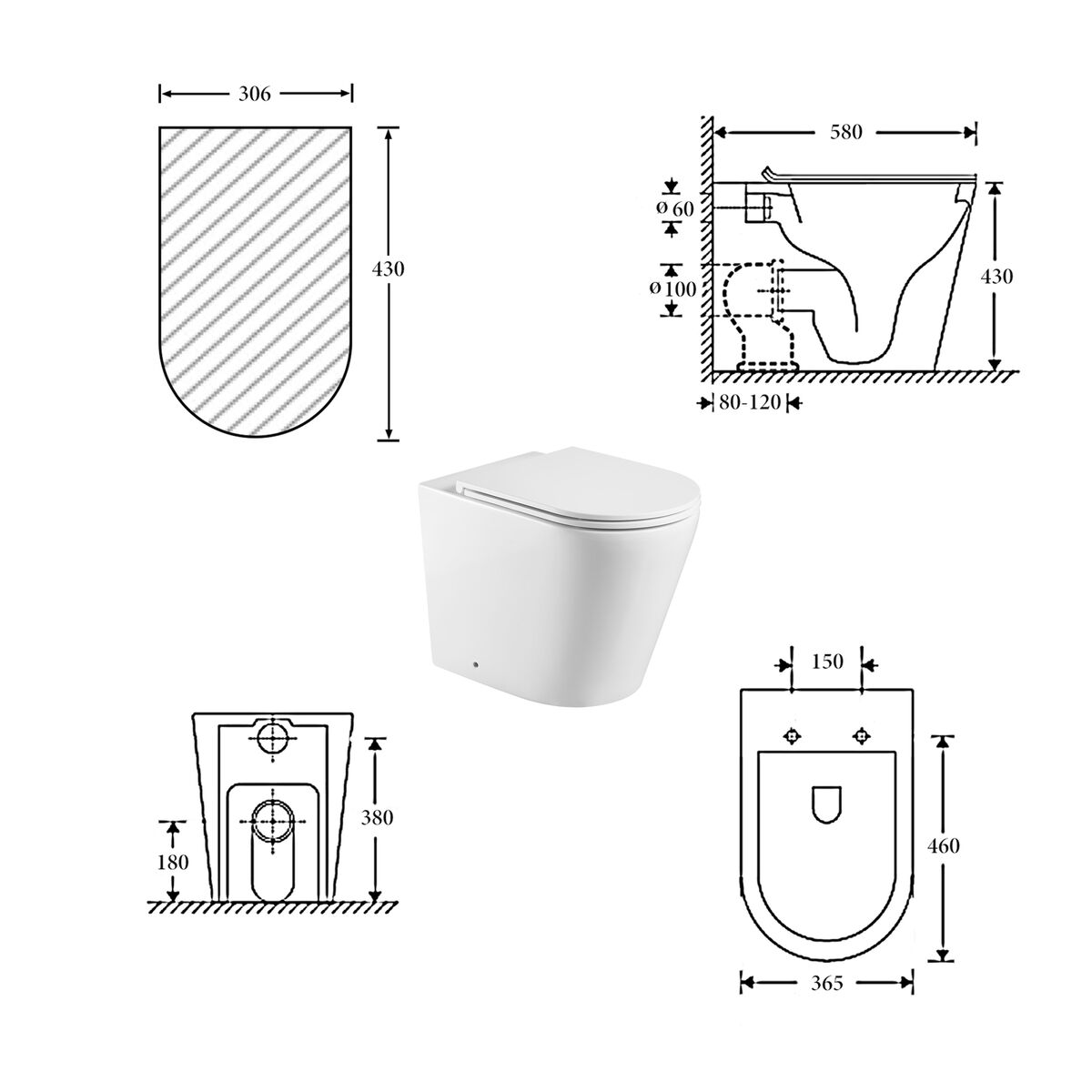

- Dimensions: Width 365 x Length 580mm x Height 430 mm (See Diagram for detailed specificatons)
Package Contents
Toilet Cistern
Push Panel: Option Selected (specify with order)
Toilet Pan
Soft close seat and lid
P Trap (waste into wall) standard setup, S Trap Kit (waste into floor) included FREE (please request)
Fittings, accessories, instructions
Cistern Wels Spec G3003:
- Watermark Certified (Standards AS 1172.1 & AS 1172.2)
- WELS Registration Number: L05964
- 3 star WELS Rating
- 4.5 Litre Full Flush/ 3L Half Flush Dual Flush
Pan:
(BE0602-TN-XXX)
| SKU | BE0602-TN-XXX |
| Model # | BE0602-TN-XXX |
| Barcode # | Does not apply |
| Brand | NOVEEN |
| Shipping Weight | 60.0000kg |
| Shipping Width | 0.510m |
| Shipping Height | 0.650m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.198900000m3 |
| Unit Of Measure | 1 |
| Assembled Length | 0.580m |
| Assembled Height | 0.430m |
| Assembled Width | 0.370m |
| Type | Toilet |
