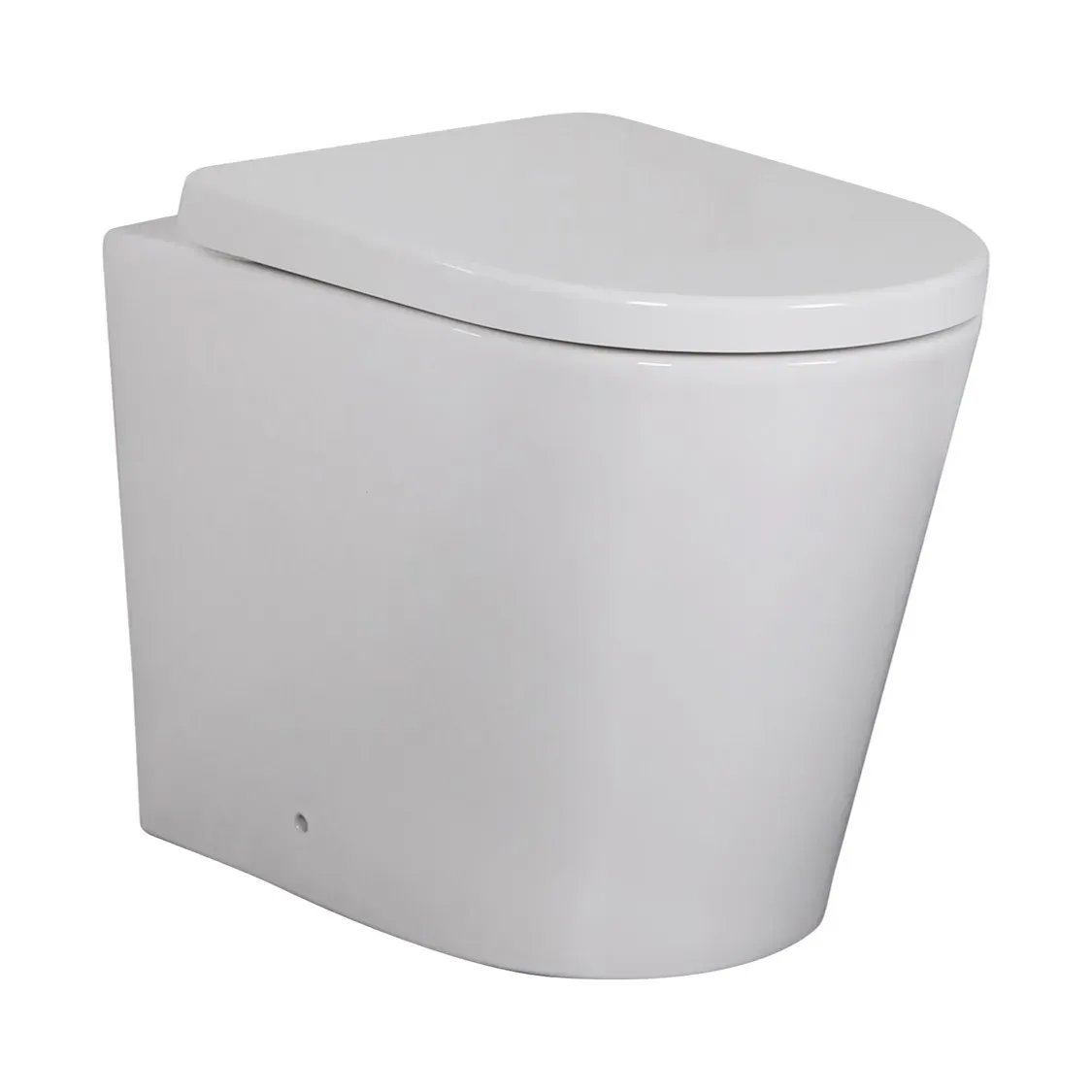

Toilet Pan Rimless Ceramic S&P Trap Curve Design Soft Close Seat (Match With CE23003G In Wall Cistern-Sold Separately)
Many substandard suites are available on the market. Identical designs are produced by various manufacturers resulting in vast quality differences.
Our suites have a high quality finish and rich white porcelain glaze, we invite you to inspect and compare - you will see the difference. Happy shopping!
Modern Curve Design Floor Mount Pan (Match With In-Wall Cistern- Sold Separately)
Minimalistic elegance, latest European design pan with chrome push button flush.
Features
- Back to Wall Floor Mount Pan (plumbing connections completely concealed within the pan)
- Manufactured to Australian Standards

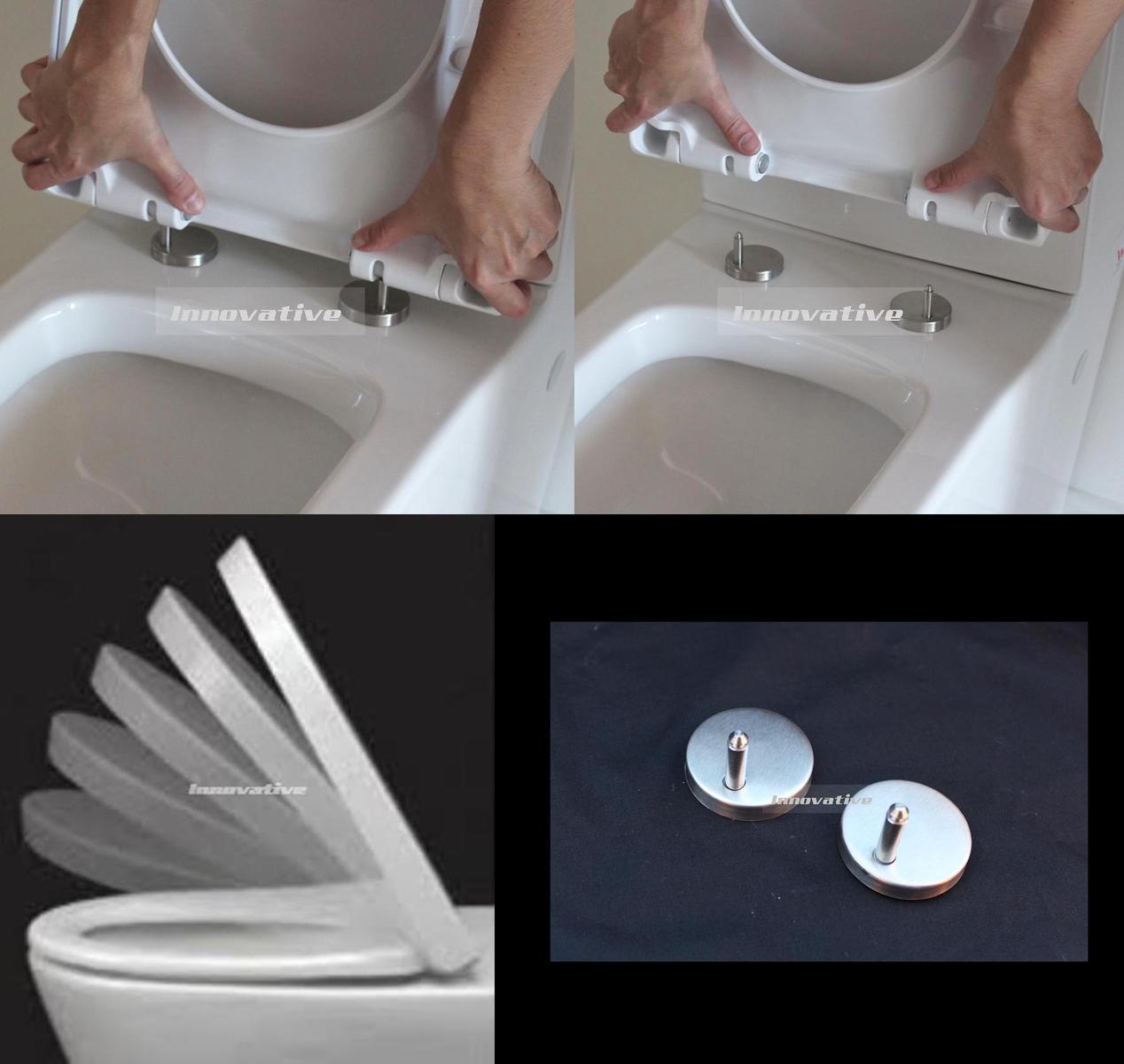

- Heavy Duty Quick Release Soft Close Seat and Lid, featuring push button removal for easy cleaning
- Full back to wall pan
- Rimless Design

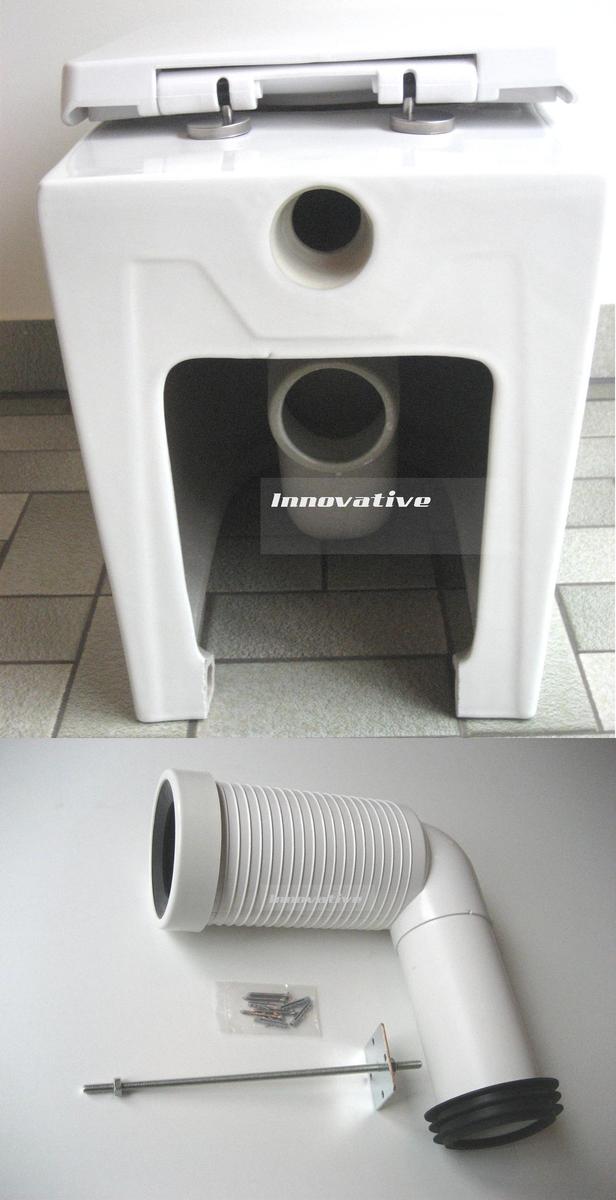

- Suitable for both Floor waste (S Trap) and Wall waste (P Trap) waste outlets (accessories and instructions provided)
- Solid Full Ceramic Construction
- Easy to install (recommended for installation by a licensed plumber or as required by local state or territory)
Specification
- Watermark approved
- WELS ****4 Star water Rating
- Dual Flush Mechanism 4.3 / 2.9L providing economical water consumption
- S Trap (wall to waste centre) adjustable between 50 - 100 mm (150-180mm with optional adaptor)
- P Trap (floor to waste centre) 180mm
- Warranty for manufacturers faults or defects:
10 Year warranty on vitreous China
2 Year warranty on valves and fixing kit

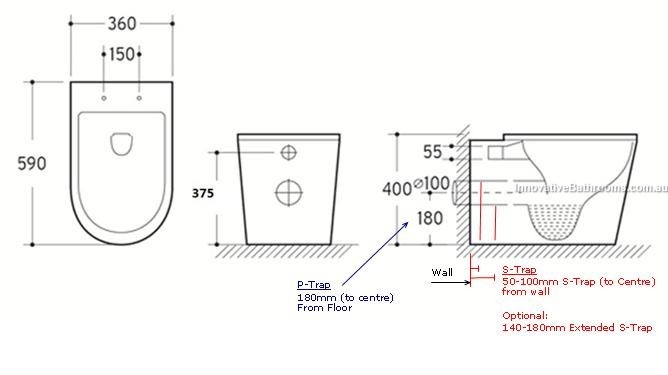

- Dimensions: Width 355 x Length 590mm x Height 405 mm (See Diagram for detailed specificatons)
Package Contents
Toilet Pan
Soft close seat and lid
P Trap (waste into wall) standard setup, S Trap Kit (waste into floor) included FREE (please request)
Fittings, accessories, instructions
(TFKR201)
WELS SPECIFICATION:
Licence Number: 1156
Registration Number: L05610
Star Rating: 4
Water Consumption: 3.3 L/Flush
WELS Brand: KDK
WELS Model Code: KDK102R
Full Flush: 4.5 L/Flush
Half Flush: 3 L/Flush
| SKU | TFKR201 |
| Model # | K102 |
| Barcode # | Does not apply |
| Brand | KDK |
| Shipping Weight | 60.0000kg |
| Shipping Width | 0.510m |
| Shipping Height | 0.650m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.198900000m3 |
| Unit Of Measure | 1 |
| Assembled Length | 0.590m |
| Assembled Height | 0.400m |
| Assembled Width | 0.360m |
| Type | Toilet Pan |
| WELS SPECIFICATION: | |
| Licence Number | 1156 |
| Registration Number | L05610 |
| Star Rating | 4 |
| Water Consumption | 3.3 L/Flush |
| WELS Brand | KDK |
| WELS Model Code | KDK102R |
| Full Flush | 4.5 L/Flush |
| Half Flush | 3 L/Flush |
